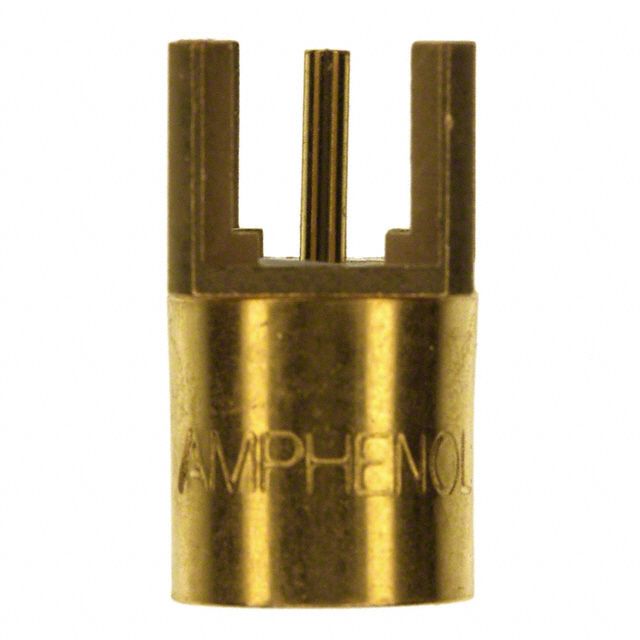

903-410P-53P

Active

Amphenol RF

CONN SMB PLUG STR 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	903-410P-53P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Dielectric Material	Number of Ports	Connector Type	Center Contact Material	Center Contact Plating	Contact Termination	Fastening Type	Body Material	Mating Cycles	Frequency - Max [Max]	Housing Color	Insertion Loss	Mounting Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Body Finish
Amphenol RF 903-410P-53P	Polytetrafluoroethylene (PTFE)	1	Female Socket Plug	Beryllium Copper	Gold	Solder	Snap-On	Brass	500	4 GHz	Gold	0.3 dB	Through Hole	Solder	-65 ░C	165 °C	50 Ohms	SMB	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Through Hole Solder
