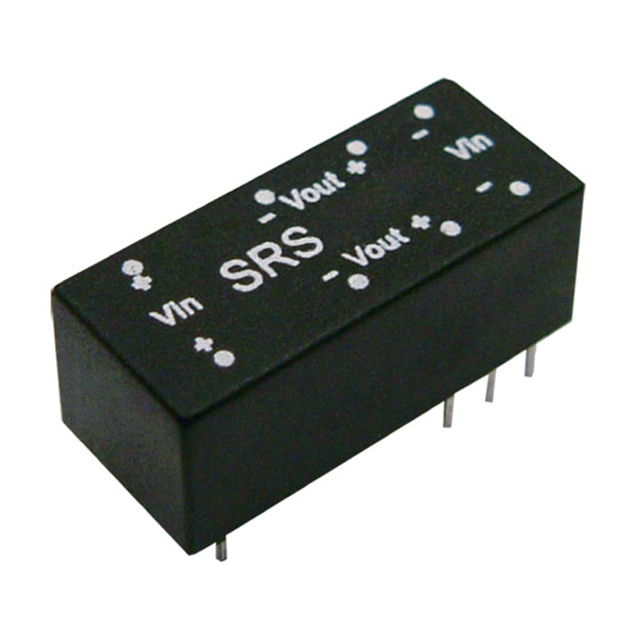

SRS-0515

Active

MEAN WELL USA Inc.

DC DC CONVERTER 15V 510MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRS-0515

Active

MEAN WELL USA Inc.

DC DC CONVERTER 15V 510MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRS-0515

Applications	ITE (Commercial)
Current - Output (Max) [Max]	34 mA
Efficiency	60 %
Features	OCP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Package / Case	16-DIP Module, 8 Leads
Power (Watts)	510 mW
Size / Dimension [x]	0.89 in
Size / Dimension [x]	22.6 mm
Size / Dimension [y]	9.9 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	8.4 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V

SRS Series

Part	Voltage - Output 1	Package / Case	Applications	Voltage - Isolation	Type	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Efficiency
MEAN WELL USA Inc. SRS-4809	9 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	52.8 V	43.2 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	504 mW	1	56 mA	60 %
MEAN WELL USA Inc. SRS-4815	15 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	52.8 V	43.2 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	510 mW	1	34 mA	60 %
MEAN WELL USA Inc. SRS-2412	12 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	26.4 V	21.6 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	504 mW	1	42 mA	60 %
MEAN WELL USA Inc. SRS-2409	9 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	26.4 V	21.6 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	504 mW	1	56 mA	60 %
MEAN WELL USA Inc. SRS-0505	5 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	5.5 V	4.5 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	0.5 W	1	100 mA	60 %
MEAN WELL USA Inc. SRS-1205	5 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	13.2 V	10.8 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	0.5 W	1	100 mA	60 %
MEAN WELL USA Inc. SRS-0509	9 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	5.5 V	4.5 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	504 mW	1	56 mA	60 %
MEAN WELL USA Inc. SRS-0515	15 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	5.5 V	4.5 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	510 mW	1	34 mA	60 %
MEAN WELL USA Inc. SRS-4812	12 V	16-DIP Module 8 Leads	ITE (Commercial)	1000 V	Isolated Module	OCP SCP	52.8 V	43.2 V	-25 °C	71 °C	Through Hole	8.4 mm	9.9 mm	0.89 in	22.6 mm	0.33 in	0.39 "	504 mW	1	42 mA	60 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.37
		5	$ 3.25

Description

General part information

SRS Series

Isolated Module DC DC Converter 1 Output 15V 34mA 4.5V - 5.5V Input
