ACD-09PMFS-LC7001

Active

Amphenol LTW

MIDDLE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MIDDLE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-09PMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Fastening Type	Primary Material	Material Flammability Rating	Contact Material	Orientation	Shell Size - Insert	Current Rating (Amps)	Voltage Rating	Insert Material	Shielding	Mounting Feature	Contact Finish - Mating	Connector Type	Shell Material	Ingress Protection
Amphenol LTW ACD-09PMFS-LC7001	-40 °C	105 ░C	9	Black	Bayonet Lock	Plastic	UL94 V-0	Copper Alloy	Keyed	C	5 A	250 VAC	Polyamide (PA) Nylon Glass Filled	Unshielded	Bulkhead - Front Side Nut	Gold	Receptacle Female Sockets	Glass Filled Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

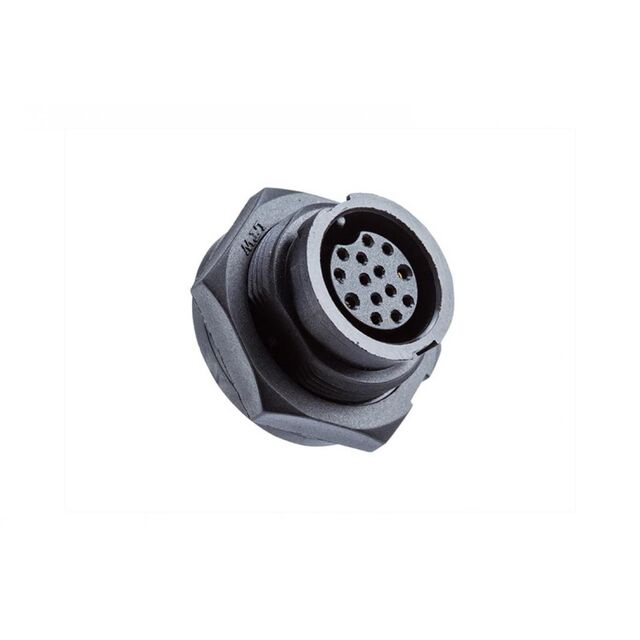

9 Position Circular Connector Receptacle, Female Sockets Solder Cup
