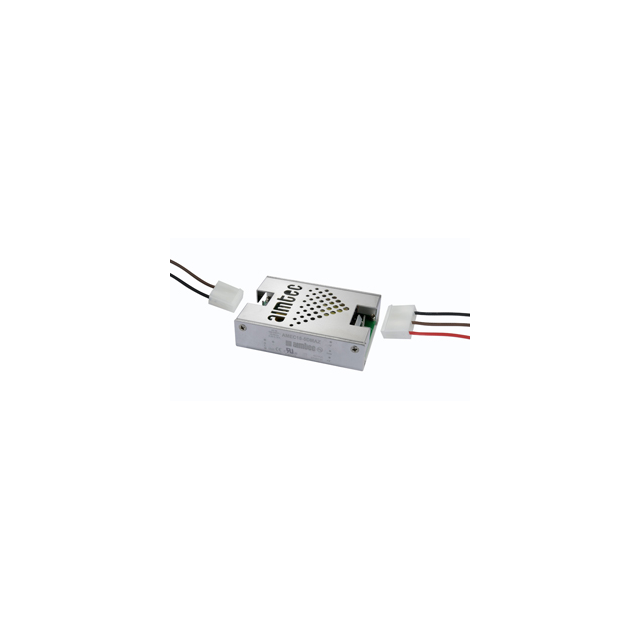

AMEC15-12SMAZ
Activeaimtec
AC/DC CONVERTER 12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEC15-12SMAZ
Activeaimtec
AC/DC CONVERTER 12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEC15-12SMAZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 1.25 A |
| Efficiency | 79 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 92 mm |
| Size / Dimension [x] | 3.62 in |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 0.94 in |
| Size / Dimension [z] | 24 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.57 | |
| 5 | $ 28.71 | |||
| 10 | $ 28.43 | |||
| 25 | $ 27.87 | |||
| 50 | $ 27.32 | |||
| 100 | $ 26.02 | |||
| 250 | $ 24.85 | |||
| 500 | $ 23.85 | |||
Description
General part information
AMEC15 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
