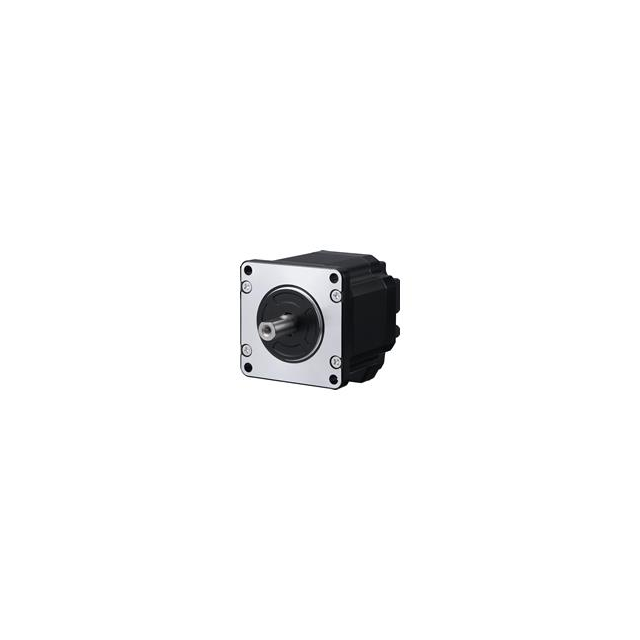

PBM603FXE20
ActiveSanyo Denki SanMotion Products
PB, PB, SQ.60, FOR PB3D, , ,
Deep-Dive with AI
Search across all available documentation for this part.
PBM603FXE20
ActiveSanyo Denki SanMotion Products
PB, PB, SQ.60, FOR PB3D, , ,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBM603FXE20 |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Coil Type | Bipolar |
| Length - Shaft and Bearing | 20.6 mm |
| Length - Shaft and Bearing [x] | 0.811 in |
| Mounting Hole Spacing | 50 mm |
| Mounting Hole Spacing | 1.969 " |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Rotor Inertia | 9.62 gcm² |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [y] | 60 mm |
| Torque - Holding (oz-in / mNm) | 184.1 oz-in |
| Torque - Holding (oz-in / mNm) | 1300 mNm |
| Type | Hybrid |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 169.47 | |
| 5 | $ 155.74 | |||
| 10 | $ 150.18 | |||
| 25 | $ 145.00 | |||
Description
General part information
PBM603 Series
Bipolar Stepper Motor Hybrid Frame Size Step 48VDC
Documents
Technical documentation and resources
No documents available
