M6,BK

Active

Serpac

BOX ABS BLACK 4.15"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.15"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	M6,BK

Area (L x W)	64.3 cm²
Area (L x W)	9.96 in²
Color	Black
Container Type	Box
Features	Battery Compartment, 9V and AA
Height [z]	0.85 in
Height [z]	21.59 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.15 "
Size / Dimension [x]	105.41 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	60.96 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.11 lb
Weight	49.9 g

Part	Weight	Weight	Container Type	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness	Color	Material Flammability Rating	Material
Serpac M6,TRGY	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Gray	UL94 HB	Plastic ABS
Serpac M6,TRRD	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Red	UL94 HB	Plastic ABS
Serpac M6,TRGR	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Green	UL94 HB	Plastic ABS
Serpac M6,GY	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Gray	UL94 HB	Plastic ABS
Serpac M6,TRBL	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Translucent - Blue	UL94 HB	Plastic ABS
Serpac M6,BK	0.11 lb	49.9 g	Box	IP40	4.15 "	2.4 "	105.41 mm	60.96 mm	9V and AA Battery Compartment	0.85 in	21.59 mm	64.3 cm²	9.96 in²	2.54 mm	0.1 in	Black	UL94 HB	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

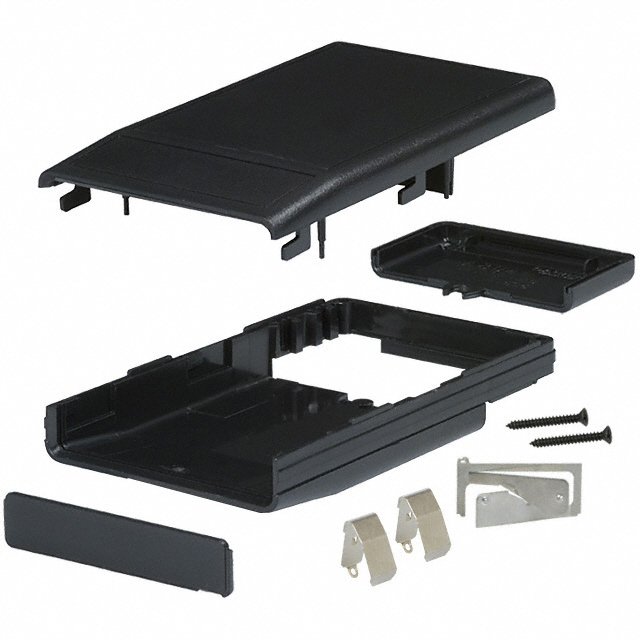

Box Plastic, ABS Black Hand Held, Split Sides and End Panel(s) 4.150" L x 2.400" W (105.41mm x 60.96mm) X 0.850" (21.59mm)

Technical documentation and resources

No documents available
