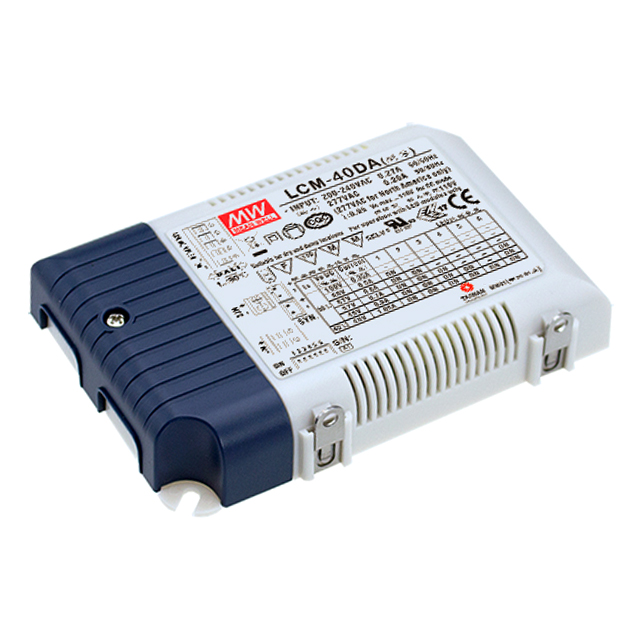

LCM-40DA

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 2-100V 1.05A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 2-100V 1.05A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Features	Topology	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Termination Style	Type	Dimming	Voltage - Input (Max) [Max] [custom]
MEAN WELL USA Inc. LCM-40KN	90 %	OTP OVP SCP	AC DC Converter	3750 V	2 V	100 VDC	0.91 in	123.5 mm	23 mm	3.21 in	81.5 mm	4.86 "	-30 ░C	90 °C	295 VAC	180 VAC	42 W	6	1.05 A	Chassis Mount	CB CCC CE EAC ENEC	Terminal Block	Constant Current
MEAN WELL USA Inc. LCM-40DA	91 %	OTP OVP SCP	AC DC Converter	3750 V	2 V	100 VDC	0.91 in	123.5 mm	23 mm	3.21 in	81.5 mm	4.86 "	-30 ░C	90 °C	295 VAC	180 VAC	42 W	1	1.05 A	Chassis Mount	CB CCC CE cURus ENEC	Terminal Block	Constant Current	DALI
MEAN WELL USA Inc. LCM-40U	87.5 %	OTP OVP SCP	AC DC Converter	3750 V	2 V	100 VDC	0.91 in	123.5 mm	23 mm	3.21 in	81.5 mm	4.86 "	-30 ░C	90 °C		90 VAC	35 W	1	1.05 A	Chassis Mount		Terminal Block	Constant Current	Analog PWM	132 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.05A 2 ~ 100V Constant Current LED Driver AC DC Converter Topology 1 Output
