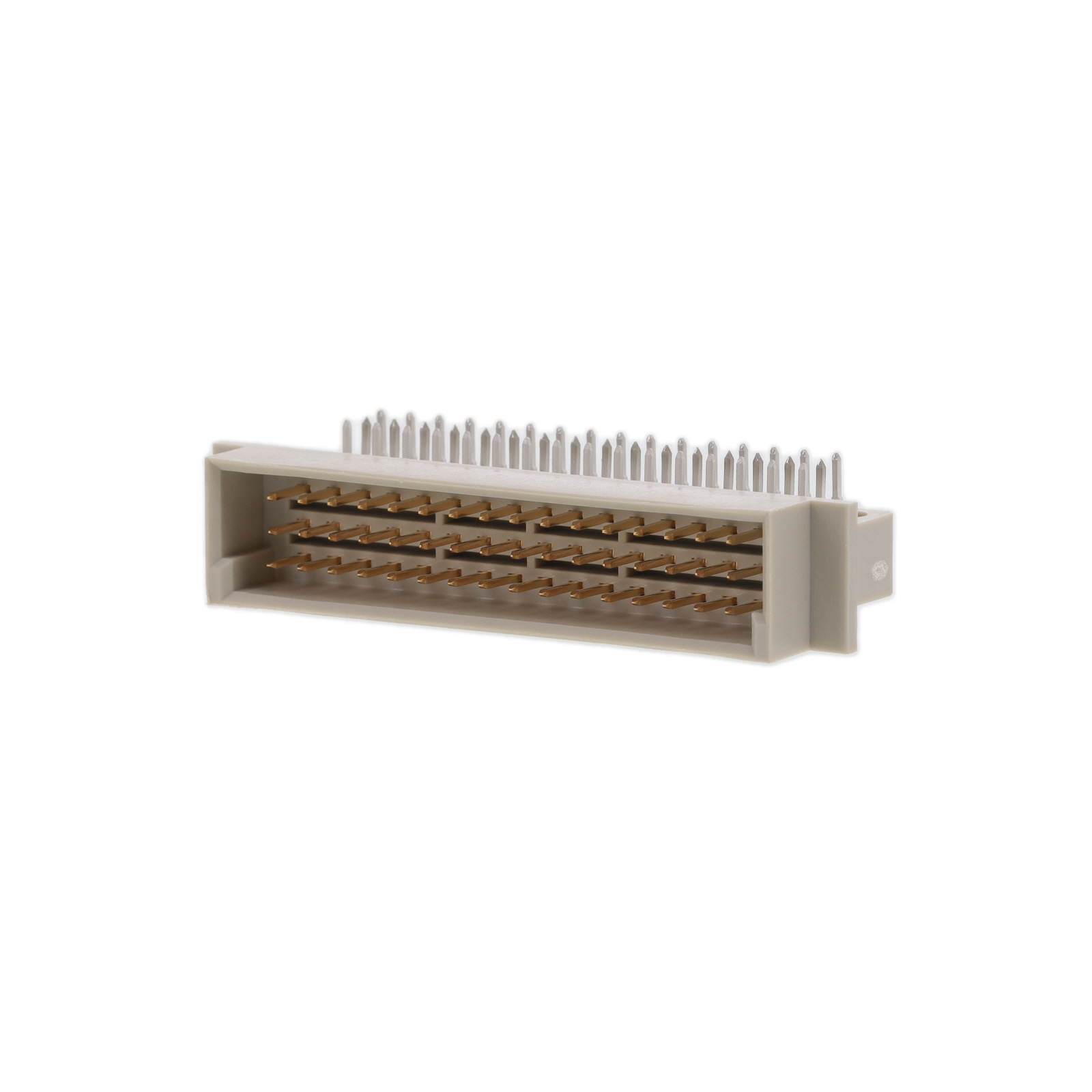

122A10619X

Active

Amphenol CONEC

CONN DIN RCPT 48POS PNL MNT GOLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN DIN RCPT 48POS PNL MNT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	122A10619X

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	3
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	C/2
Style	1/2 C
Termination	Wire Wrap

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Level, Class	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish	Current Rating (Amps)	Material - Insulation	Mounting Type	Termination	Number of Positions	Connector Type	Number of Positions Loaded [custom]	Style	Style	Number of Positions Loaded	Number of Positions Loaded
Amphenol CONEC 122A10629X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	48	Receptacle Female Sockets	16	C/2	1/2 C
Amphenol CONEC 122A10659X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	48	Receptacle Female Sockets		C/2	1/2 C	32
Amphenol CONEC 122A10669X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	48	Receptacle Female Sockets		C/2	1/2 C	48
Amphenol CONEC 122A10679X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	48	Receptacle Female Sockets	16	C/2	1/2 C
Amphenol CONEC 122A10619X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold		Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	Wire Wrap	48	Receptacle Female Sockets		C/2	1/2 C		All
Amphenol CONEC 122A10639X	3	-55 °C	125 °C	3	UL94 V-0	2.54 mm	0.1 in	Gold	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Solder	48	Receptacle Female Sockets	16	C/2	1/2 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Din Connector Receptacle, Female Sockets Gold Panel Mount, Through Hole
