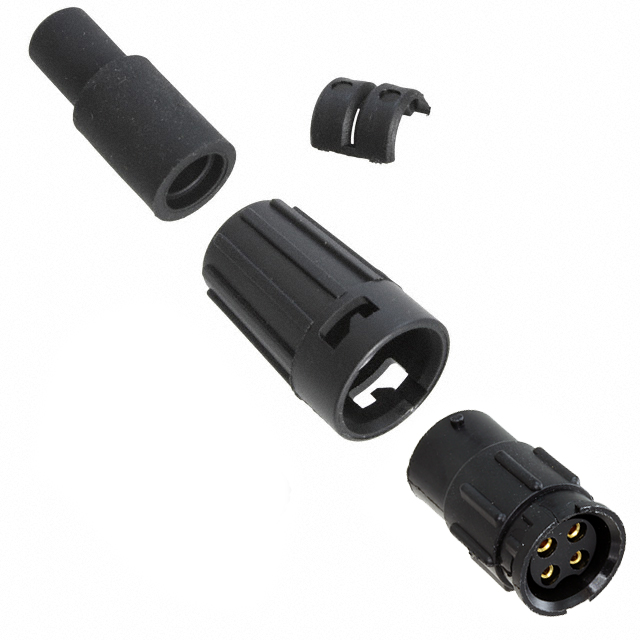

8282-4SG-516
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8282-4SG-516
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8282-4SG-516 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.18 in |
| Cable Opening [Max] [custom] | 4.57 mm |
| Cable Opening [Min] [custom] | 0.16 in |
| Cable Opening [Min] [custom] | 4.06 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
8282-4SG Series
| Part | Backshell Material, Plating | Features | Current Rating (Amps) | Orientation | Contact Finish - Mating | Ingress Protection | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] | Mounting Type | Applications | Fastening Type | Shielding | Primary Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Color | Number of Positions | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Nylon Polyamide (PA) | Backshell | Varies by Wire Gauge | Keyed | Gold | Weathertight | 600 V | 0.15 in 0.17 in | 3.81 mm 4.32 mm | Free Hanging (In-Line) | Automotive Communication Systems Instrumentation | Bayonet Lock | Unshielded | Plastic | Brass | -40 °C | 115 °C | Receptacle Female Sockets | Black | 4 | ||||||||
Conxall/Switchcraft | Nylon Polyamide (PA) | Backshell | Varies by Wire Gauge | Keyed | Gold | Weathertight | 600 V | Free Hanging (In-Line) | Automotive Communication Systems Instrumentation | Bayonet Lock | Unshielded | Plastic | Brass | -40 °C | 115 °C | Receptacle Female Sockets | Black | 4 | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | ||||||
Conxall/Switchcraft | Nylon Polyamide (PA) | Backshell | Varies by Wire Gauge | Keyed | Gold | Weathertight | 600 V | Free Hanging (In-Line) | Automotive Communication Systems Instrumentation | Bayonet Lock | Unshielded | Plastic | Brass | -40 °C | 115 °C | Receptacle Female Sockets | Black | 4 | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 10.87 | |
| 300 | $ 9.91 | |||
| 500 | $ 9.27 | |||
| 1000 | $ 8.50 | |||
Description
General part information
8282-4SG Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
