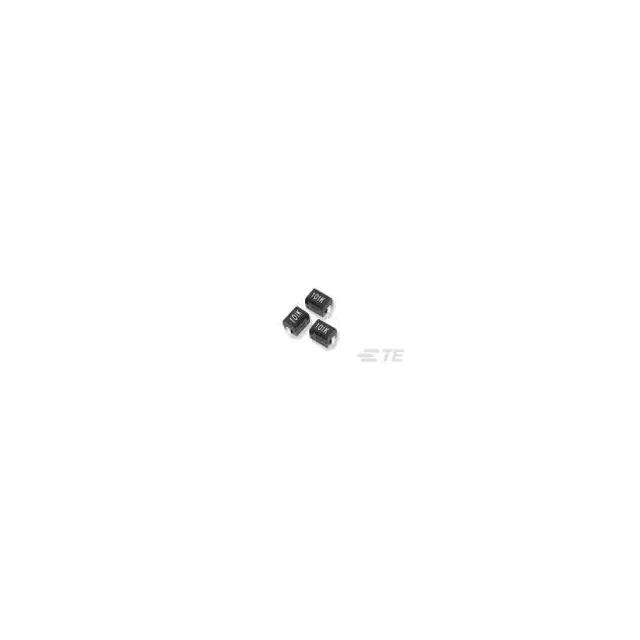

1-1624094-5
ActiveTE Connectivity Passive Product
FIXED IND 3.3UH 355MA 800MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1624094-5
ActiveTE Connectivity Passive Product
FIXED IND 3.3UH 355MA 800MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1624094-5 |
|---|---|
| Current Rating (Amps) | 355 mA |
| DC Resistance (DCR) [Max] | 800 mOhm |
| Frequency - Self Resonant | 45 MHz |
| Height - Seated (Max) [Max] [z] | 3.4 mm |
| Height - Seated (Max) [Max] [z] | 0.134 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 1812 (4532 Metric) |
| Q @ Freq | 7.96 MHz, 50 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 0.38 | |
| 1000 | $ 0.28 | |||
Description
General part information
1624094 Series
3.3 µH Unshielded Inductor 355 mA 800mOhm Max 1812 (4532 Metric)
