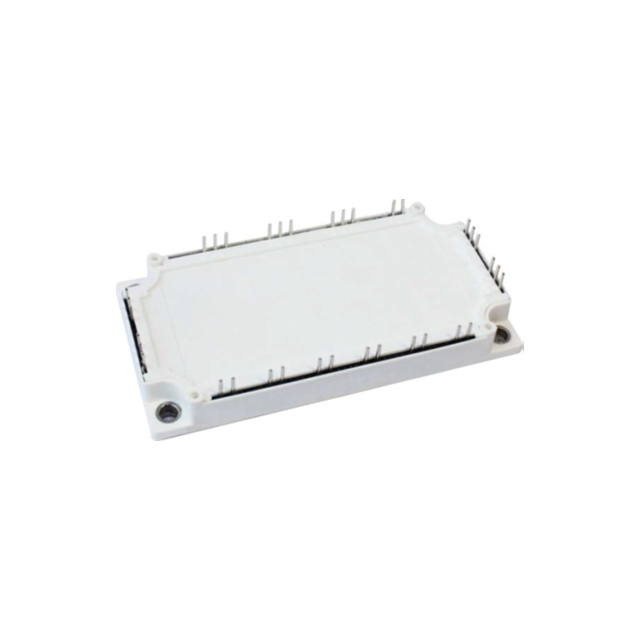

GSID100A120T2C1

Obsolete

SemiQ

IGBT MOD 1200V 200A 640W

Search across all available documentation for this part.

Obsolete

SemiQ

IGBT MOD 1200V 200A 640W

Technical Specifications

Parameters and characteristics for this part

Specification	GSID100A120T2C1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	200 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	13.7 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	640 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	Input	Power - Max [Max]	NTC Thermistor	Current - Collector (Ic) (Max) [Max]	Configuration	Package / Case	Mounting Type
SemiQ GSID100A120T2C1	2.1 V	1 mA	1200 V	13.7 nF	Module	Three Phase Bridge Rectifier	640 W		200 A	Three Phase Inverter	Module	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Three Phase Inverter 1200 V 200 A 640 W Chassis Mount Module
