55444.10000

Active

ebm-papst Inc.

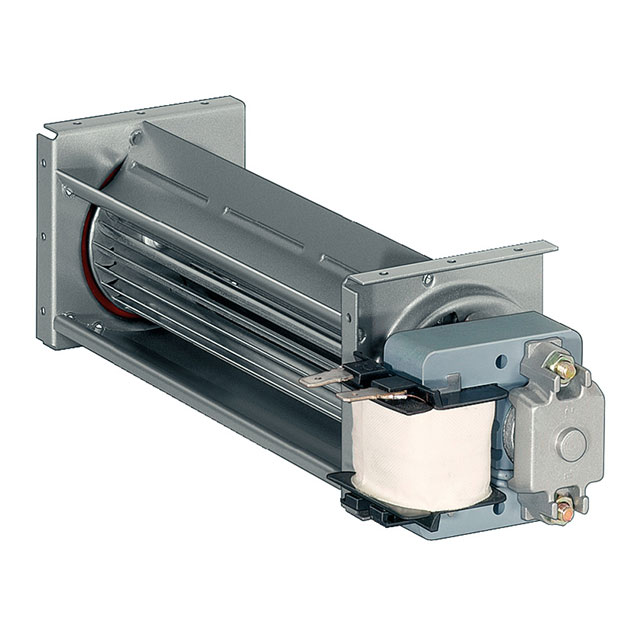

FAN BLOWER CF 100X74MM 115VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 100X74MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Blowers & Centrifugal Fans AC CrossFlow Blower

Part	Width [y]	Air Flow	Air Flow	RPM	Voltage - Rated	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Fan Type	Weight	Weight
ebm-papst Inc. 55444.10000	74 mm	0.532 m³/min	19 CFM	2100 RPM	115 VAC	2 Terminals	60 °C	0 °C	0 °C	60 °C	0.052 in H2O	13 Pa	40 mm	59 mm	176 mm	6 W	Blower Cross Flow	453.59 g	1 lbs
ebm-papst Inc. 55444.40000	74 mm	1.51 m³/min	54 CFM	2000 RPM	115 VAC	2 Terminals	60 °C	0 °C	0 °C	60 °C	0.06 in H2O	15 Pa	40 mm	59 mm	332 mm	12 W	Blower Cross Flow	635 g	1.4 lbs
