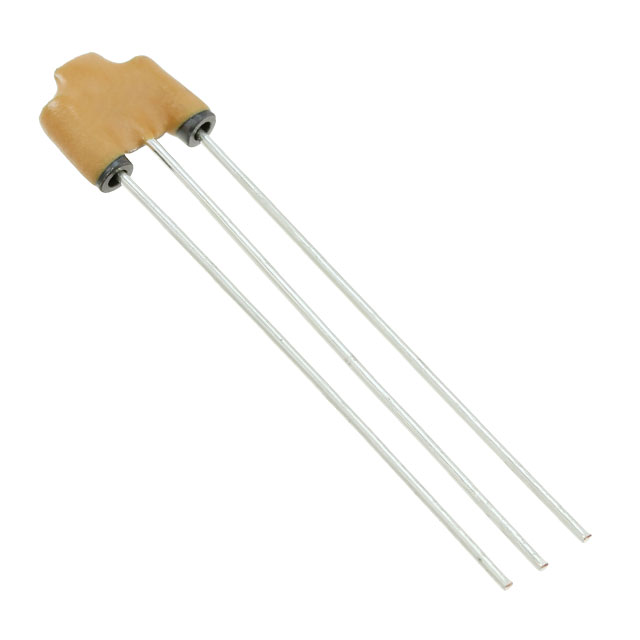

DSS6NZ82A103Q93A
ObsoleteMurata Power Solutions Inc.
FILTER LC(T) 0.01UF TH
Deep-Dive with AI
Search across all available documentation for this part.
DSS6NZ82A103Q93A
ObsoleteMurata Power Solutions Inc.
FILTER LC(T) 0.01UF TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSS6NZ82A103Q93A |
|---|---|
| Applications | General Purpose |
| Current | 6 A |
| ESD Protection | False |
| Filter Order | 3 |
| Height [z] | 10 mm |
| Height [z] | 0.394 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial - 3 Leads |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 2.54 mm |
| Size / Dimension [y] | 0.1 in |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Values | 10000 pF |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DSS6NZ82A Series
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 10000pF 6 A Radial - 3 Leads
