XQEBLU-02-0000-000000Y02

Active

Cree LED

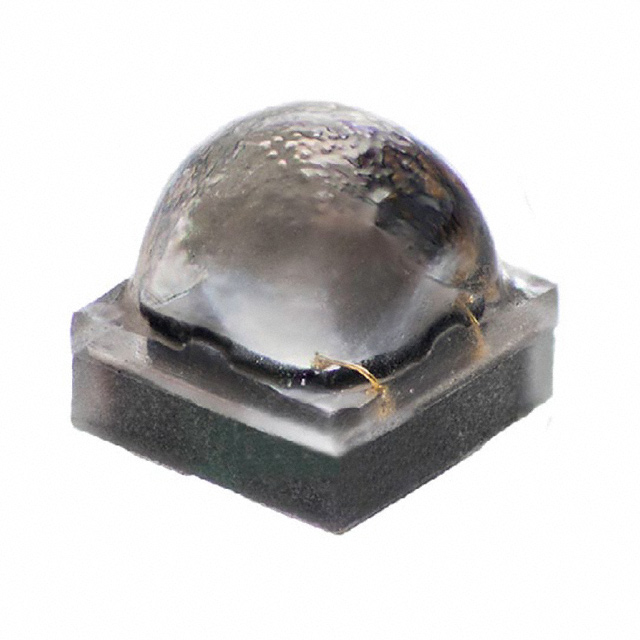

LED XLAMP XQE BLUE 473NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XQEBLU-02-0000-000000Y02

Active

Cree LED

LED XLAMP XQE BLUE 473NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XQEBLU-02-0000-000000Y02

Color	Blue
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max]	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "
Lumens/Watt @ Current - Test	30 lm/W
Luminous Flux @ Current/Temperature	33 lm
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	6 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	3.1 V
Wavelength [Max]	480 nm
Wavelength [Min]	465 nm

XQEBLU Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Supplier Device Package	Wavelength [Max]	Wavelength [Min]	Thermal Resistance of Package [custom]	Viewing Angle	Current - Max [Max]	Current - Test	Package / Case	Mounting Type	Lumens/Watt @ Current - Test	Color	Height - Seated (Max) [Max] [z]	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XQEBLU-00-0000-000000302	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	49 lm	0.068 "	1.73 mm	SMD	480 nm	465 nm	6 °C/W	125 °	1 A	350 mA	0606 1616 Metric	Surface Mount	45 lm/W	Blue
Cree LED XQEBLU-H0-0000-000000302	0.063 in	1.6 mm	0.063 in	1.6 mm	2.75 V	49 lm	0.035 "		0606	480 nm	465 nm		130 °	1.5 A	350 mA	0606 1616 Metric	Surface Mount		Blue	0.9 mm
Cree LED XQEBLU-H0-0000-000000301	0.063 in	1.6 mm	0.063 in	1.6 mm	2.75 V	49 lm	0.035 "		0606	485 nm	465 nm		130 °	1.5 A	350 mA	0606 1616 Metric	Surface Mount		Blue	0.9 mm	470 nm
Cree LED XQEBLU-02-0000-000000202	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	43 lm	0.068 "	1.73 mm	SMD	480 nm	465 nm	6 °C/W	125 °	1 A	350 mA	0606 1616 Metric	Surface Mount	40 lm/W	Blue
Cree LED XQEBLU-02-0000-000000205	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	43 lm	0.068 "	1.73 mm	SMD	480 nm	470 nm	6 °C/W	125 °	1 A	350 mA	0606 1616 Metric	Surface Mount	40 lm/W	Blue		475 nm
Cree LED XQEBLU-H0-0000-000000305	0.063 in	1.6 mm	0.063 in	1.6 mm	2.75 V	49 lm	0.035 "		0606	480 nm	470 nm		130 °	1.5 A	350 mA	0606 1616 Metric	Surface Mount		Blue	0.9 mm	475 nm
Cree LED XQEBLU-02-0000-000000Z02	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	38 lm	0.068 "	1.73 mm	SMD	480 nm	465 nm	6 °C/W	125 °	1 A	350 mA	0606 1616 Metric	Surface Mount	35 lm/W	Blue			35 lm	40 lm
Cree LED XQEBLU-H2-0000-000000Z01	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	38 lm	0.068 "	1.73 mm	SMD	485 nm	465 nm	6 °C/W	130 °	1 A	350 mA	0606 1616 Metric	Surface Mount	35 lm/W	Blue		475 nm	35 lm	40 lm
Cree LED XQEBLU-02-0000-000000Y02	0.063 in	1.6 mm	0.063 in	1.6 mm	3.1 V	33 lm	0.068 "	1.73 mm	SMD	480 nm	465 nm	6 °C/W	125 °	1 A	350 mA	0606 1616 Metric	Surface Mount	30 lm/W	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.17
		500	$ 1.10
		1250	$ 1.01

Description

General part information

XQEBLU Series

LED Lighting Color XLamp® XQ-E Blue 473nm (465nm ~ 480nm) 0606 (1616 Metric)
