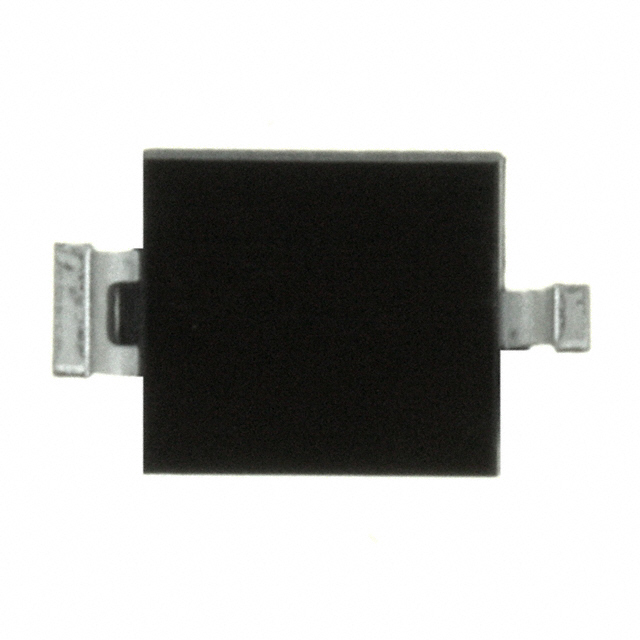

BP 104 FAS-Z
Activeams-OSRAM USA INC.
SENSOR PHOTODIODE 880NM 2SMD GW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BP 104 FAS-Z
Activeams-OSRAM USA INC.
SENSOR PHOTODIODE 880NM 2SMD GW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BP 104 FAS-Z |
|---|---|
| Active Area | 4.84 mm˛ |
| Current - Dark (Typ) | 2 nA |
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, Gull Wing |
| Response Time | 20 ns |
| Spectral Range [Max] [custom] | 1100 nm |
| Spectral Range [Min] [custom] | 730 nm |
| Viewing Angle | 120 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.71 | |||
| 100 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.71 | |||
| 100 | $ 0.46 | |||
| Tape & Reel (TR) | 1500 | $ 0.37 | ||
| 3000 | $ 0.34 | |||
| 7500 | $ 0.33 | |||
| 10500 | $ 0.32 | |||
Description
General part information
BP 104 Series
Photodiode 880nm 20ns 120° 2-SMD, Gull Wing
