HFW1201G00

Unknown

TE Connectivity Aerospace, Defense and Marine

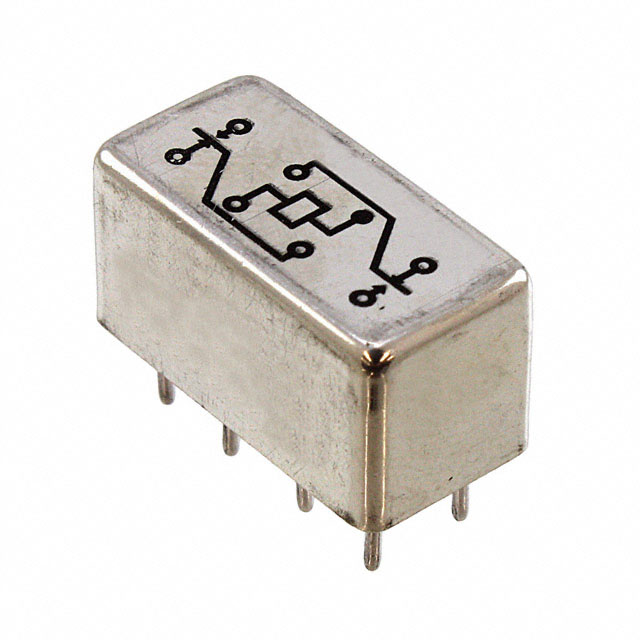

RELAY GEN PURPOSE DPDT 2A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HFW1201G00

Unknown

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 2A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HFW1201G00

Coil Current	75 mA
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Mounting Type	Through Hole
Must Operate Voltage	6.4 VDC
Must Release Voltage	0.7 VDC
Operate Time	4 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	28 VDC
Termination Style	PC Pin

1617030 Series

Part	Coil Type	Mounting Type	Must Release Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Coil Resistance	Coil Current	Relay Type	Contact Form	Operate Time	Must Operate Voltage	Release Time	Seal Rating	Termination Style	Contact Material	Switching Voltage	Coil Voltage [Max]	Coil Voltage [Min]	Load - Max Switching
TE Connectivity Aerospace, Defense and Marine 1-1617030-7	Non Latching	Through Hole	2.5 VDC	2 A	125 °C	-65 ░C	48 VDC	3.5 kOhms	13.7 mA	General Purpose	DPDT (2 Form C)	4 ms	25.5 VDC	4 ms	Sealed - Hermetically	PC Pin
TE Connectivity Aerospace, Defense and Marine HFW1201F01	Non Latching	Through Hole	0.35 VDC	2 A	125 °C	-65 ░C		40 Ohms	150 mA	General Purpose	DPDT (2 Form C)	4 ms	3.2 VDC	4 ms	Sealed - Hermetically	PC Pin	Gold (Au) Silver (Ag)
TE Connectivity Aerospace, Defense and Marine HFW1201B00	Non Latching	Through Hole	0.68 VDC	2 A	125 °C	-65 ░C	12 VDC	160 Ohms	47.5 mA	General Purpose	DPDT (2 Form C)	4 ms	6.8 VDC	4 ms	Sealed - Hermetically	PC Pin	Gold (Au) Silver (Ag)	28 VDC
TE Connectivity Aerospace, Defense and Marine 1-1617030-5	Non Latching	Through Hole	1.5 VDC	2 A	125 °C	-65 ░C		1250 Ohms		General Purpose	DPDT (2 Form C)	4 ms	14 VDC	4 ms	Sealed - Hermetically	PC Pin	Gold (Au) Silver (Ag)	28 VDC 115 VAC	32 VDC	26.5 VDC	56 W 230 VA
TE Connectivity Aerospace, Defense and Marine HFW1201F00	Non Latching	Through Hole	0.35 VDC	2 A	125 °C	-65 ░C		40 Ohms	150 mA	General Purpose	DPDT (2 Form C)	4 ms	3.2 VDC	4 ms	Sealed - Hermetically	PC Pin	Gold (Au) Silver (Ag)
TE Connectivity Aerospace, Defense and Marine 1617030-6	Non Latching	Through Hole	0.68 VDC	2 A	125 °C	-65 ░C		320 Ohms		General Purpose	DPDT (2 Form C)	4 ms	6.8 VDC	4 ms	Sealed - Hermetically	PC Pin			15 VDC	12 VDC
TE Connectivity Aerospace, Defense and Marine HFW1201G00	Non Latching	Through Hole	0.7 VDC	2 A	125 °C	-65 ░C	12 VDC	160 Ohms	75 mA	General Purpose	DPDT (2 Form C)	4 ms	6.4 VDC	4 ms	Sealed - Hermetically	PC Pin		28 VDC
TE Connectivity Aerospace, Defense and Marine HFW1201D00	Non Latching	Through Hole	1.5 VDC	2 A	125 °C	-65 ░C	26.5 VDC	1250 Ohms	25.8 mA	General Purpose	DPDT (2 Form C)		14 VDC			PC Pin		28 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 121.24

Description

General part information

1617030 Series

General Purpose Relay DPDT (2 Form C) Through Hole
