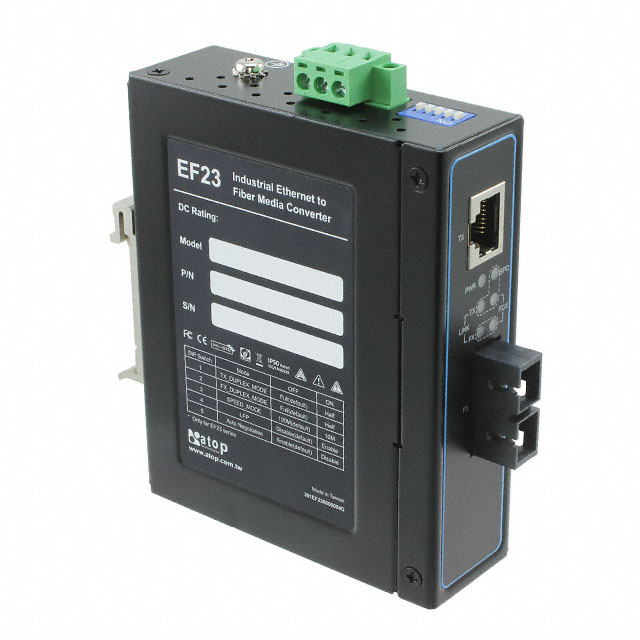

EF23-1-1FM-SC-2

Active

ATOP Technologies

INDUSTRIAL FAST ETHERNET-TO-FIBE

Search across all available documentation for this part.

Active

ATOP Technologies

INDUSTRIAL FAST ETHERNET-TO-FIBE

Technical Specifications

Parameters and characteristics for this part

Specification	EF23-1-1FM-SC-2

Configuration	Fixed
Connector Type	RJ45, SC
Copper Ports	1
Copper Type	10/100
Distance	30 km
Features	LFPT
Fiber Ports	1
Fiber Type	100BASE-FX (Multimode)
Ingress Protection	IP50
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Type	Unmanaged
Voltage - Input [Max]	48 V
Voltage - Input [Min]	6 V

Part	Ingress Protection	Fiber Type	Connector Type	Copper Type	Fiber Ports	Type	Copper Ports	Configuration	Distance	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mounting Type	Features	Voltage - Input [Max]	Voltage - Input [Min]
ATOP Technologies EF23-1-1FS-SC-30	IP50	100BASE-FX (Singlemode)	RJ45 SC	10/100	1	Unmanaged	1	Fixed	30 km	-10 °C	158 °F	DIN Rail
ATOP Technologies EF23-1-1FM-SC-2	IP50	100BASE-FX (Multimode)	RJ45 SC	10/100	1	Unmanaged	1	Fixed	30 km	-10 °C	158 °F	DIN Rail	LFPT	48 V	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.00

General part information

INDUSTRIAL FAST ETHERNET-TO-FIBE

Technical documentation and resources
