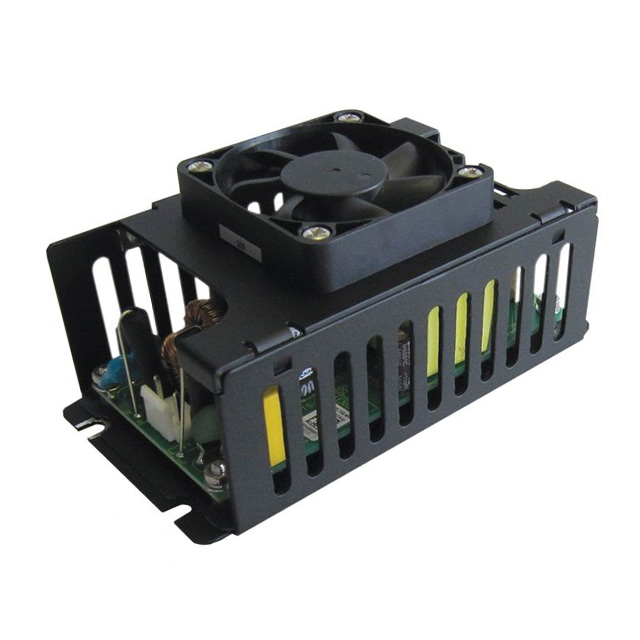

CUS150M-28/F

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150 W, 85V AC TO 264V AC, FIXED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CUS150M Instruction Manual +3

CUS150M-28/F

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 150 W, 85V AC TO 264V AC, FIXED

Deep-Dive with AI

DocumentsDatasheet CUS150M Instruction Manual +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CUS150M-28/F

Applications	ITE (Commercial), Medical
Efficiency	94 %
Features	Universal Input, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	150 W
Size / Dimension [x]	116 mm
Size / Dimension [x]	4.57 "
Size / Dimension [y]	2.52 "
Size / Dimension [y]	64 mm
Size / Dimension [z]	2 "
Size / Dimension [z]	50.7 mm
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	28 V

CUS150 Series

Part	Applications	Mounting Type	Current - Output 1	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Output 1	Features	Type	Efficiency
TDK-LAMBDA CUS150M-15	ITE (Commercial) Medical	Chassis Mount	8 A	4000 V	1	4 in	31.5 mm	1.24 "	50.8 mm	2 in	101.6 mm	120 W 150 W	15 V	Standby Output Universal Input	Open Frame	94 %
TDK-LAMBDA CUS150M-18/U	ITE (Commercial) Medical	Chassis Mount	8.33 A	4000 V	1	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	150 W	18 V	Standby Output Universal Input	Open Frame	94 %
TDK-LAMBDA CUS150M-28/U	ITE (Commercial) Medical	Chassis Mount		4000 V	1	4.57 "	38.5 mm	1.52 in	64 mm	2.52 "	116 mm	150 W	28 V	Standby Output Universal Input	Open Frame	94 %
TDK-LAMBDA CUS150M-28/F	ITE (Commercial) Medical	Chassis Mount		4000 V	1	4.57 "	50.7 mm	2 "	64 mm	2.52 "	116 mm	150 W	28 V	Standby Output Universal Input	Enclosed	94 %
TDK-LAMBDA CUS150M-12/AM	ITE (Commercial) Medical	Chassis Mount	12.5 A	4000 V	1	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	150 W	12 V	Standby Output Universal Input	Enclosed	94 %
TDK-LAMBDA CUS150M-36/A	ITE (Commercial) Medical	Chassis Mount	4.2 A	4000 V	1	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	150 W	36 V	Standby Output Universal Input	Enclosed	94 %
TDK-LAMBDA CUS150M-12/F	ITE (Commercial) Medical	Chassis Mount	12.5 A	4000 V	1	4.57 "	50.7 mm	2 "	64 mm	2.52 "	116 mm	150 W	12 V	Standby Output Universal Input	Enclosed	94 %
TDK-LAMBDA CUS150M-18/A	ITE (Commercial) Medical	Chassis Mount	8.33 A	4000 V	1	4.57 "	39.7 mm	1.57 "	64 mm	2.52 "	116 mm	150 W	18 V	Standby Output Universal Input	Enclosed	94 %
TDK-LAMBDA CUS150M-12/B	ITE (Commercial) Medical	Chassis Mount	10 A	4000 V	1	4 in	31.5 mm	1.24 "	50.8 mm	2 in	101.6 mm	120 W 150 W	12 V	Baseplate Standby Output Universal Input	Open Frame	94 %
TDK-LAMBDA CUS150M-28/B	ITE (Commercial) Medical	Chassis Mount	4.3 A	4000 V	1	4 in	31.5 mm	1.24 "	50.8 mm	2 in	101.6 mm	120 W 150 W	28 V	Baseplate Standby Output Universal Input	Open Frame	94 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 109.67
		50	$ 107.45
Newark	Each	1	$ 109.67
		50	$ 107.45

Description

General part information

CUS150 Series

Enclosed AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
