EVB_RT6154BGQW
ActiveRichtek USA Inc.

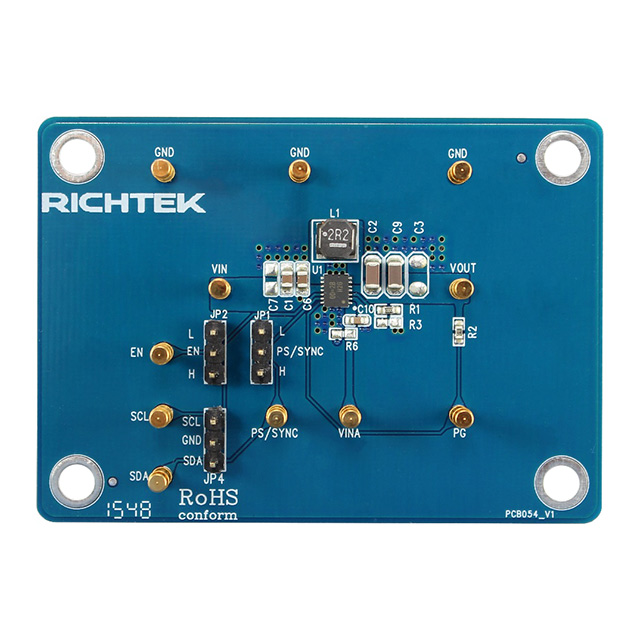

EVAL MODULE FOR RT6154BGQW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB_RT6154BGQW |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 2.4 MHz |
| Main Purpose | DC/DC, Step Up or Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck-Boost |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RT6154B |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 1.8 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RT6154 Series
RT6154B - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
