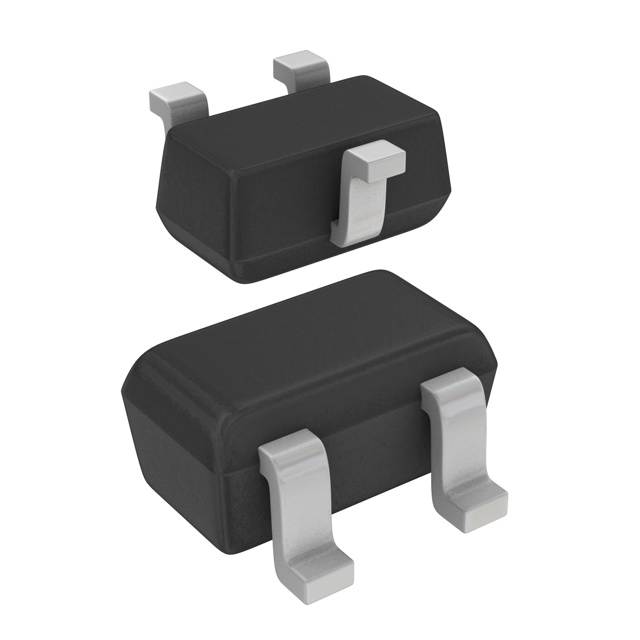

1PS75SB45,135

Obsolete

Freescale Semiconductor - NXP

DIODE ARR SCHOTT 40V 120MA SC75

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

DIODE ARR SCHOTT 40V 120MA SC75

Technical Specifications

Parameters and characteristics for this part

Specification	1PS75SB45,135

Current - Average Rectified (Io) (per Diode)	120 mA
Current - Reverse Leakage @ Vr	10 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	SC-75, SOT-416
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SC-75
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Operating Temperature - Junction	Speed	Speed	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Package / Case
Freescale Semiconductor - NXP 1PS75SB45,135	150 °C	Any Speed	200 mA	10 µA	Schottky	SC-75	1 Pair Common Cathode	40 V	Surface Mount	1 V	120 mA	SC-75 SOT-416

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 40 V 120mA (DC) Surface Mount SC-75, SOT-416
