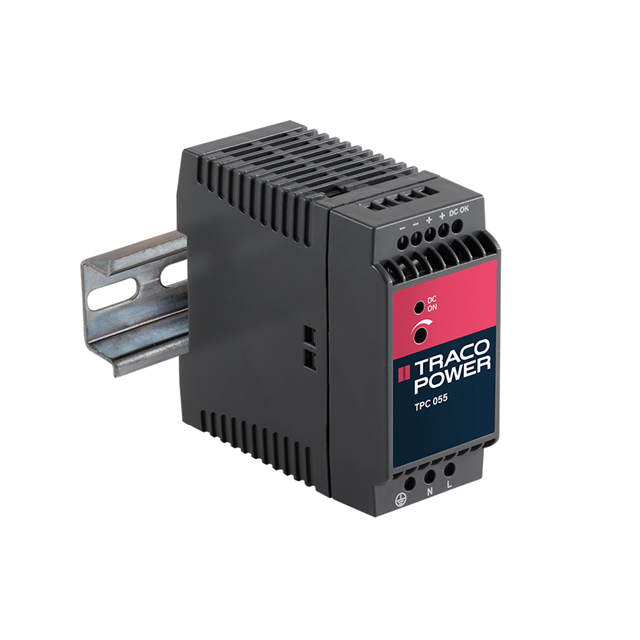

TPC 055-148

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 55W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 55W

Technical Specifications

Parameters and characteristics for this part

Specification	TPC 055-148

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	cCSAus, CB, CE, SIQ
Current - Output (Max) [Max]	1.15 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	87 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	55 W
Size / Dimension [x]	96.5 mm
Size / Dimension [x]	3.8 "
Size / Dimension [y]	45 mm
Size / Dimension [y]	1.77 "
Size / Dimension [z]	3.54 "
Size / Dimension [z]	89.9 mm
Voltage - Output 1	48 V

Part	Approval Agency	Number of Outputs	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Features	Applications	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]
Traco Power TPC 055-124	CB cCSAus CE SIQ	1	24 V	2.3 A	45 mm	3.54 "	96.5 mm	1.77 "	3.8 "	89.9 mm	AC or DC	Adjustable Output IP20 Universal Input	Industrial ITE (Commercial)	90 V	85 VAC	264 VAC	55 W	87 %	-25 °C	70 °C	375 V
Traco Power TPC 055-148	CB cCSAus CE SIQ	1	48 V	1.15 A	45 mm	3.54 "	96.5 mm	1.77 "	3.8 "	89.9 mm	AC or DC	Adjustable Output IP20 Universal Input	Industrial ITE (Commercial)	90 V	85 VAC	264 VAC	55 W	87 %	-25 °C	70 °C	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 64.99
