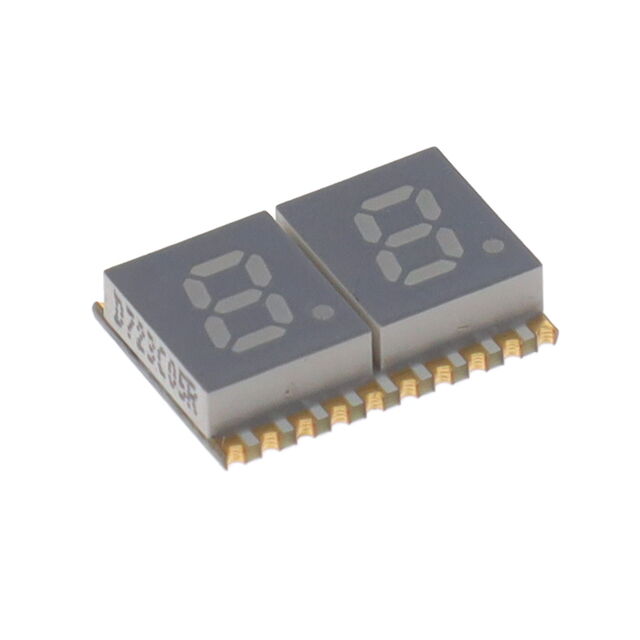

ACDC02-41SURKWA-F01
ActiveKingbright
DISPLAY 7-SEG 0.2" DBL RED 20SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACDC02-41SURKWA-F01
ActiveKingbright
DISPLAY 7-SEG 0.2" DBL RED 20SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACDC02-41SURKWA-F01 |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 5.08 mm |
| Digit/Alpha Size | 0.2 in |
| Display Type | 7-Segment |
| Millicandela Rating | 30 mcd |
| Number of Characters | 2 |
| Package / Case | 20-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.555 " |
| Size / Dimension [y] | 14.1 mm |
| Size / Dimension [z] | 0.118 " |
| Size / Dimension [z] | 3 mm |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 650 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.16 | |
| 10 | $ 3.58 | |||
| 100 | $ 2.76 | |||
| Digi-Reel® | 1 | $ 5.16 | ||
| 10 | $ 3.58 | |||
| 100 | $ 2.76 | |||
| Tape & Reel (TR) | 300 | $ 2.53 | ||
| 600 | $ 2.41 | |||
| 900 | $ 2.35 | |||
| 1500 | $ 2.29 | |||
| 2100 | $ 2.25 | |||
| 3000 | $ 2.22 | |||
Description
General part information
ACDC02 Series
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 1.95V 20mA 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead
