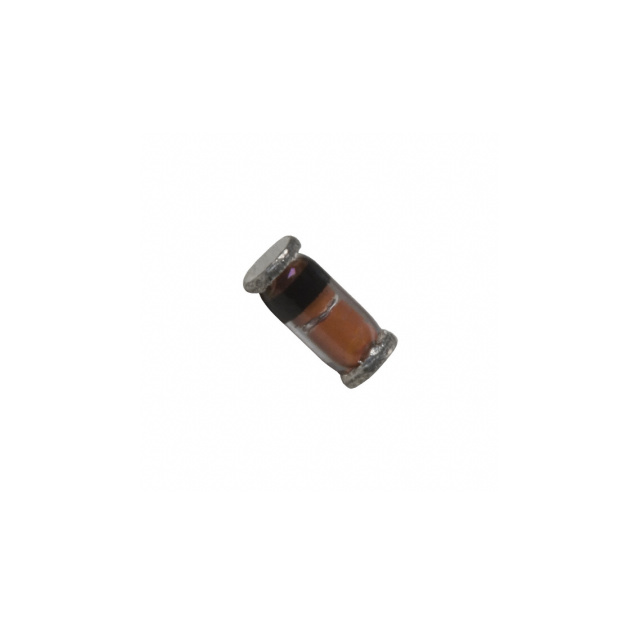

CLL4707 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE ZENER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLL4707 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE ZENER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLL4707 TR TIN/LEAD |
|---|---|
| Current - Reverse Leakage @ Vr | 10 nA |
| Mounting Type | Surface Mount |
| Package / Case | MINI-MELF, DO-213AC, SOD-80 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-80 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 7500 | $ 0.13 | ||
| 12500 | $ 0.12 | |||
| 25000 | $ 0.11 | |||
| 62500 | $ 0.11 | |||
Description
General part information
CLL4707 Series
Zener Diode 20 V 500 mW ±5% Surface Mount SOD-80
