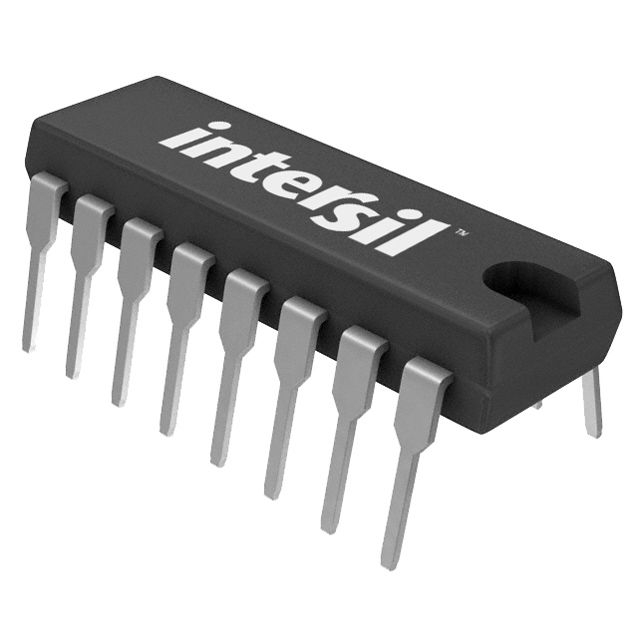

X9428WP16I-2.7

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 16DIP

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 16DIP

Technical Specifications

Parameters and characteristics for this part

Specification	X9428WP16I-2.7

Configuration	Potentiometer
Features	Selectable Address
Interface	I2C
Memory Type	Non-Volatile
Mounting Type	Through Hole
Number of Circuits	1
Number of Taps	64
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.3 in
Package / Case	16-DIP
Package / Case	7.62 mm
Resistance - Wiper (Ohms) (Typ)	150 Ohms
Resistance (Ohms)	10k
Supplier Device Package	16-PDIP
Taper	Linear
Temperature Coefficient (Typ)	300 ppm/°C
Tolerance	20 %
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	±2.7V

Part	Resistance - Wiper (Ohms) (Typ)	Mounting Type	Interface	Taper	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Features	Memory Type	Package / Case	Package / Case	Package / Case	Temperature Coefficient (Typ)	Resistance (Ohms)	Number of Taps	Number of Circuits
Renesas Electronics Corporation X9428WP16I-2.7	150 Ohms	Through Hole	I2C	Linear	20 %	85 °C	-40 °C	Potentiometer	±2.7V	5.5 V	16-PDIP	Selectable Address	Non-Volatile	0.3 in	16-DIP	7.62 mm	300 ppm/°C	10k	64	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Digital Potentiometer 10k Ohm 1 Circuit 64 Taps I2C Interface 16-PDIP
