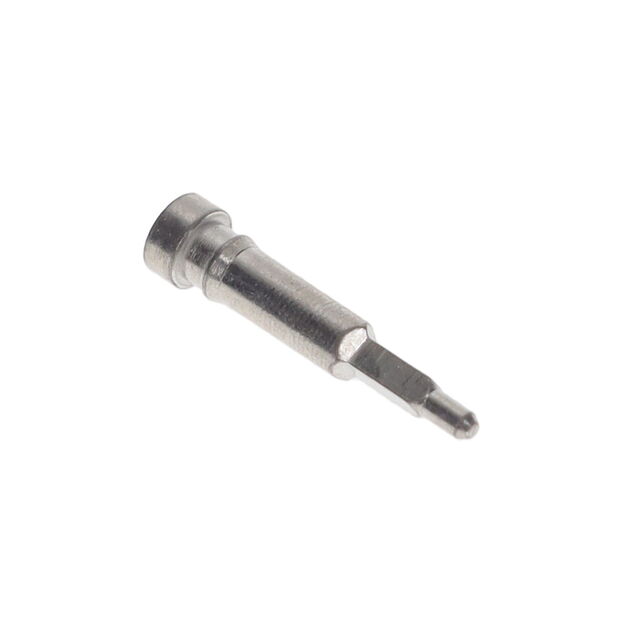

9970-0-15-80-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	9970-0-15-80-30-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	8.38 mm
Length - Overall [x]	0.33 in
Mounting Hole Diameter [diameter]	0.032 "
Mounting Hole Diameter [diameter]	0.81 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	4.45 mm
Socket Depth	0.175 in
Tail Diameter	0.64 mm
Tail Diameter	0.025 in
Tail Type	Standard Tail
Termination	Press-Fit

Part	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter	Termination	Contact Material	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 9970-0-15-80-30-27-04-0	8.38 mm	0.33 in	4.45 mm	0.175 in	1.83 mm	0.072 in	Standard Tail	-55 °C	125 °C	0.64 mm	0.025 in	Press-Fit	Beryllium Copper	Gold	0.032 "	0.81 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit

Technical documentation and resources

No documents available
