WM8758CBGEFL/V

Obsolete

Cirrus Logic Inc.

IC CODEC STEREO HQ LP 32QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC CODEC STEREO HQ LP 32QFN

Technical Specifications

Parameters and characteristics for this part

Specification	WM8758CBGEFL/V

Data Interface	Serial
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	2
Number of ADCs / DACs [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-VFQFN Exposed Pad
Resolution (Bits)	24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	100 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	92.5 db
Sigma Delta	True

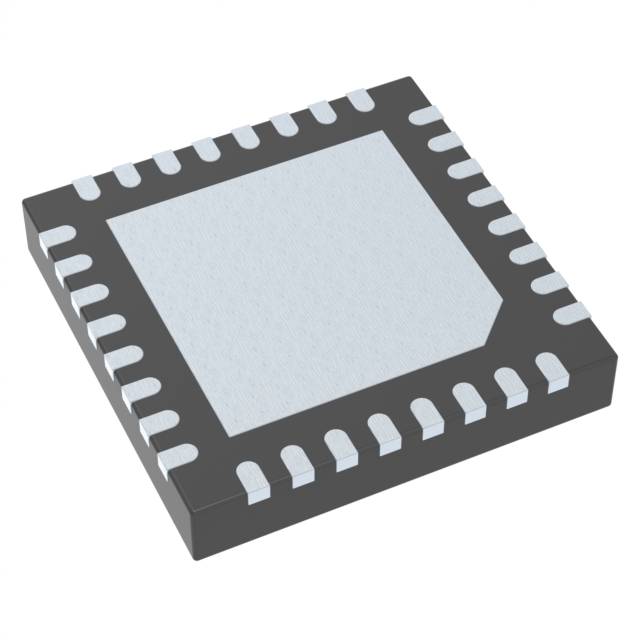

Supplier Device Package	32-QFN (5x5)
Type	Stereo Audio
Voltage - Supply, Analog [Max]	3.6 V
Voltage - Supply, Analog [Min]	2.5 V
Voltage - Supply, Digital [Max]	3.6 V
Voltage - Supply, Digital [Min]	1.71 V

Part	Sigma Delta	Package / Case	Supplier Device Package	Resolution (Bits)	Mounting Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Data Interface	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Type
Cirrus Logic Inc. WM8758CBGEFL/V		32-VFQFN Exposed Pad	32-QFN (5x5)	24 b	Surface Mount	1.71 V	3.6 V	Serial	2	2	3.6 V	2.5 V	100 db	92.5 db	85 °C	-40 °C	Stereo Audio
Cirrus Logic Inc. WM8758CBGEFL/RV		32-VFQFN Exposed Pad	32-QFN (5x5)	24 b	Surface Mount	1.71 V	3.6 V	Serial	2	2	3.6 V	2.5 V	100 db	92.5 db	85 °C	-40 °C	Stereo Audio

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stereo Audio Interface 24 b Serial 32-QFN (5x5)

Technical documentation and resources

No documents available
