09320123001

Active

HARTING Technology Group

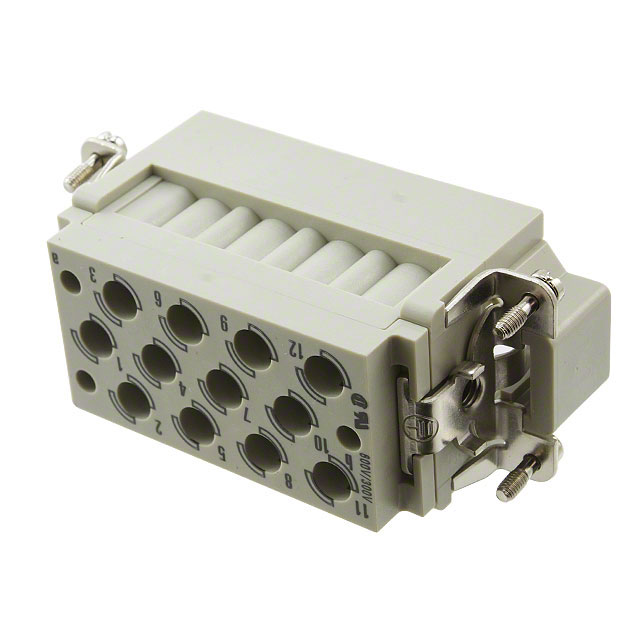

HEAVY DUTY CONNECTOR, HAN-COM SERIES, INSERT, 14+PE CONTACTS, 16B, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-COM SERIES, INSERT, 14+PE CONTACTS, 16B, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09320123001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D, Han® C
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	Ground
Number of Positions	2, 12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Crimp

Part	Color	Number of Positions	Number of Positions	Connector Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Size	Housing Material	Gender
HARTING Technology Group 09320123101	Gray	Ground	2 12	Insert without Contacts	Crimp	125 °C	-40 °C	UL94 V-0	Han® C Han® D	16 B	Polycarbonate (PC)	Female
HARTING Technology Group 09320123001	Gray	Ground	2 12	Insert without Contacts	Crimp	125 °C	-40 °C	UL94 V-0	Han® C Han® D	16 B	Polycarbonate (PC)	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 12+2+Ground Position Crimp
