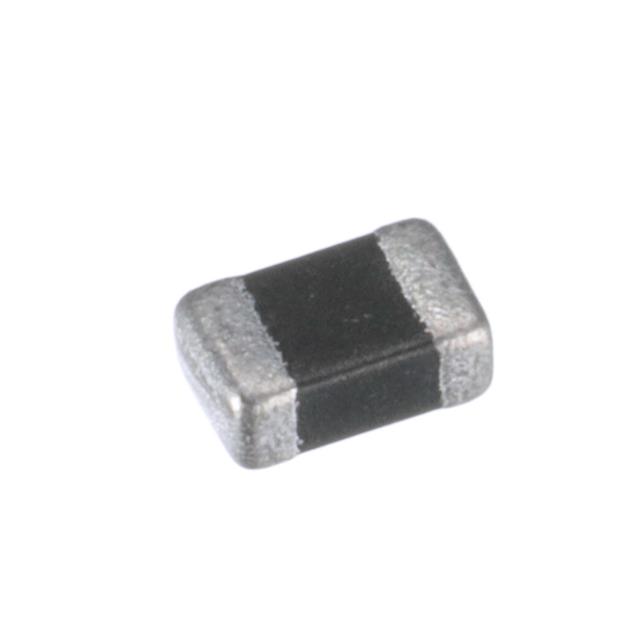

TVSL02V03C011
ActiveEaton - Electronics Division
TVS DIODE ESD 3V SMD 0201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TVSL02V03C011
ActiveEaton - Electronics Division
TVS DIODE ESD 3V SMD 0201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TVSL02V03C011 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 11.5 pF |
| Current - Peak Pulse (10/1000µs) | 8 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power - Peak Pulse | 50 W |
| Power Line Protection | False |
| Supplier Device Package | 0201 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 4.7 V |
| Voltage - Clamping (Max) @ Ipp | 6.3 V |
| Voltage - Reverse Standoff (Typ) [Max] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.20 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 15000 | $ 0.05 | ||
| 30000 | $ 0.05 | |||
| 45000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 105000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
TVSL02 Series
6.3V (Typ) Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 0201
