G12JVF

Active

NKK Switches

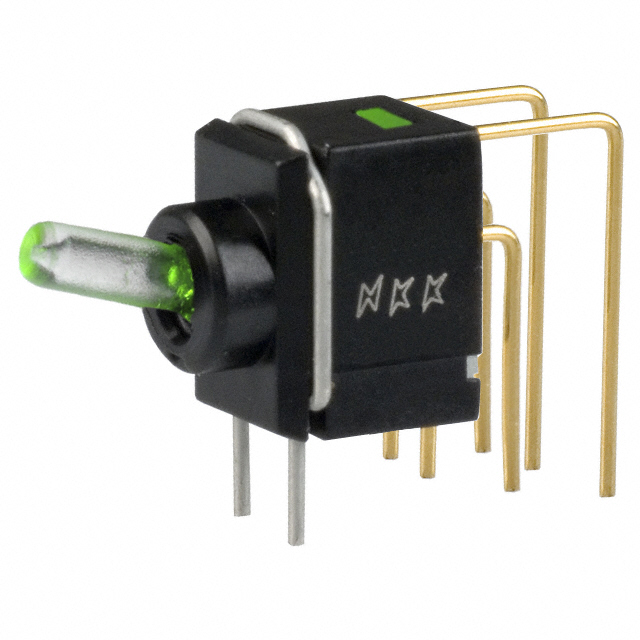

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	G12JVF

Actuator Length [x]	3.8 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Voltage Rating - DC	Termination Style	Bushing Thread	Mounting Type	Actuator Length [x]	Illumination Voltage (Nominal)	Electrical Life	Switch Function	Actuator Material	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Illumination	Features	Circuit
NKK Switches G12JVF	-25 °C	85 °C	Green LED	28 V	PC Pin	Unthreaded	Right Angle Through Hole Vertical	3.8 mm	2.1 VDC	100000 Cycles	On-On	Glass Filled Nylon Polyamide (PA)	28 V	0.4 VA	Standard Round	Illuminated	Process Sealed	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
