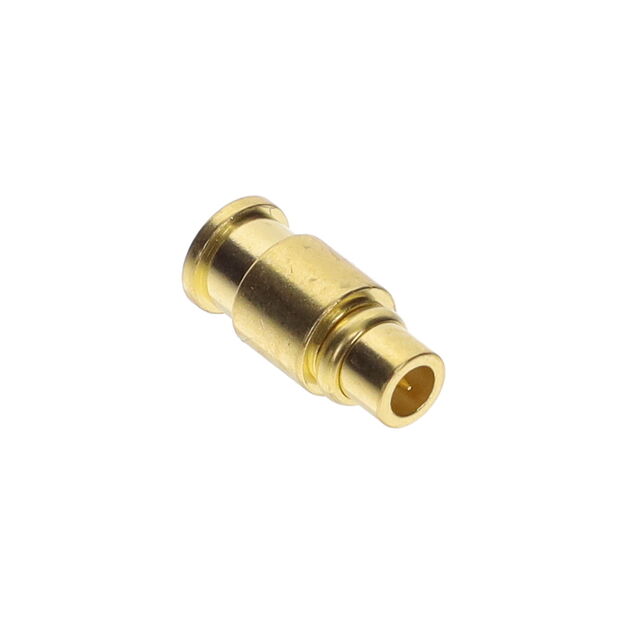

11_MMPX-50-2-3/111_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, PLUG, CABLE, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

11_MMPX-50-2-3/111_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, PLUG, CABLE, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_MMPX-50-2-3/111_NE

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMPX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	67 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

11_MMCX-50 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Fastening Type	Body Finish	Number of Ports	Connector Type	Frequency - Max [Max]	Impedance	Dielectric Material	Body Material	Connector Style	Mating Cycles	Voltage Rating	Center Contact Material	Contact Termination	Mounting Type	Center Contact Plating	Cable Group	Housing Color	Cable Group
Huber+Suhner, Inc. 11_MMCX-50-2-3/111_OE	155 °C	-55 °C	Crimp	Snap-On	Gold	1	Male Pin Plug	6000 MHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	MMCX	500	170 V	Beryllium Copper	Crimp	Free Hanging (In-Line)	Gold	188 316 RG-174	Gold
Huber+Suhner, Inc. 11_MMCX-50-1-1/111_OE	155 °C	-55 °C	Crimp	Snap-On	Gold	1	Male Pin Plug	6000 MHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	MMCX	500	170 V	Beryllium Copper	Crimp	Free Hanging (In-Line)	Gold	RG-178	Gold	196
Huber+Suhner, Inc. 11_MMPX-50-2-1/111_NE	155 °C	-65 ░C	Solder	Snap-On	Gold	1	Male Pin Plug	67 GHz	50 Ohms		Brass	MMPX		170 V	Brass	Solder	Free Hanging (In-Line)	Gold		Gold
Huber+Suhner, Inc. 11_MMPX-50-2-3/111_NE	155 °C	-65 ░C	Solder	Snap-On	Gold	1	Male Pin Plug	67 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	MMPX		170 V	Beryllium Copper Brass	Crimp	Free Hanging (In-Line)	Gold	RG-405	Gold
Huber+Suhner, Inc. 11_MMCX-50-2-4/111_OE	155 °C	-55 °C	Crimp	Snap-On	Gold	1	Male Pin Plug	6000 MHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	MMCX	500	170 V	Beryllium Copper	Crimp	Free Hanging (In-Line)	Gold	RG-316	Gold
Huber+Suhner, Inc. 11_MMCX-50-1-2/111_OH	155 °C	-55 °C	Crimp	Snap-On	Gold	1	Male Pin Plug	6000 MHz	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	MMCX	500	170 V	Beryllium Copper	Crimp	Free Hanging (In-Line)	Gold		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.36
		10	$ 30.05
		25	$ 28.17
		50	$ 26.83
		100	$ 25.55
		250	$ 23.95
Newark	Each	1	$ 30.42
		5	$ 28.82
		10	$ 27.38
		25	$ 26.10
		50	$ 24.82
		100	$ 23.70

Description

General part information

11_MMCX-50 Series

MMPX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
