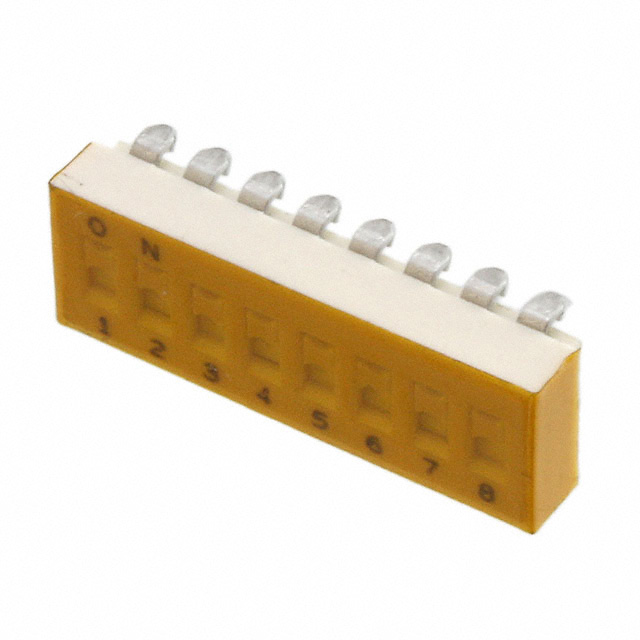

90HBJ08PT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90HBJ08PT
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90HBJ08PT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Length [x] | 0.87 in |
| Length [x] | 22.1 mm |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | J Lead |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.71 | |
| 20 | $ 4.49 | |||
| 40 | $ 4.24 | |||
| 100 | $ 3.93 | |||
| 260 | $ 3.65 | |||
| 500 | $ 3.47 | |||
| 1000 | $ 3.31 | |||
| 2500 | $ 3.12 | |||
Description
General part information
90HBJ08 Series
Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
