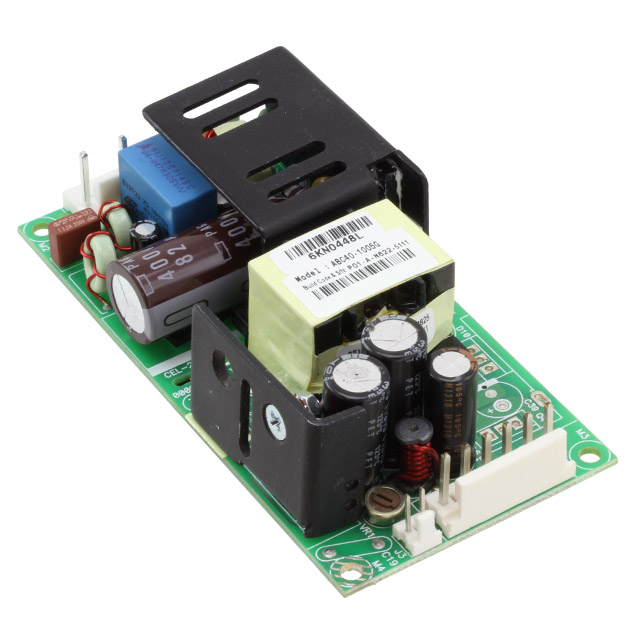

ABC40-1005G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 5.1V 8A 40W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 5.1V 8A 40W

Technical Specifications

Parameters and characteristics for this part

Specification	ABC40-1005G

Applications	ITE (Commercial)
Current - Output 1	8 A
Efficiency	85 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	40 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5.1 V

Part	Current - Output 3	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Power (Watts)	Voltage - Output 1	Current - Output 2	Mounting Type	Efficiency	Type	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 3	Voltage - Output 2
EOS Power India Private Ltd ABC40-3000G	500 mA	3	90 VAC	264 VAC	6 A	-20 °C	70 °C	ITE (Commercial)	Adjustable Output Remote Sense Standby Output Universal Input	40 W	5.2 V	2 A	Chassis Mount	85 %	Open Frame	4.242 kV	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	-12.8 V	12.5 V
EOS Power India Private Ltd ABC40-1024G		1	90 VAC	264 VAC	1.7 A	-20 °C	70 °C	ITE (Commercial)	Adjustable Output Remote Sense Standby Output Universal Input	40 W	24 V		Chassis Mount	85 %	Open Frame	4.242 kV	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "
EOS Power India Private Ltd ABC40-1005G		1	90 VAC	264 VAC	8 A	-20 °C	70 °C	ITE (Commercial)	Adjustable Output Remote Sense Standby Output Universal Input	40 W	5.1 V		Chassis Mount	85 %	Open Frame	4.242 kV	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5.1V 90 ~ 264 VAC Input
