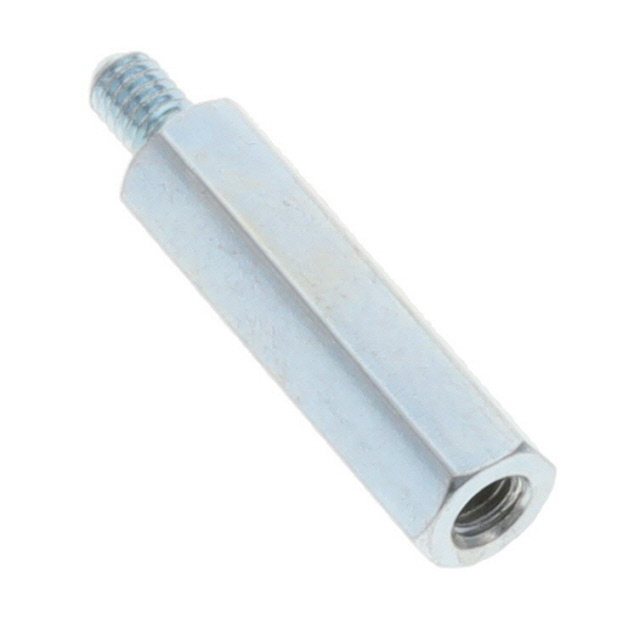

M2111-2545-S-12
ActiveRAF Electronic Hardware
4.5MM HEX X 16MM X M2.5 THD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2111-2545-S-12
ActiveRAF Electronic Hardware
4.5MM HEX X 16MM X M2.5 THD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2111-2545-S-12 |
|---|---|
| Between Board Height [z] | 16 mm |
| Between Board Height [z] | 0.63 in |
| Color | Clear |
| Diameter - Outside [diameter] | 4.5 mm |
| Diameter - Outside [diameter] | 0.177 in |
| Gender | Male, Female |
| Length - Overall | 19.97 mm |
| Length - Overall | 0.786 in |
| Plating | Zinc, Chromate |
| Screw, Thread Size | M2.5x0.45 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
| 5 | $ 0.80 | |||
| 10 | $ 0.74 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.50 | |||
Description
General part information
M2111 Series
Hex Standoff Threaded M2.5x0.45 Steel 0.630" (16.00mm) Clear
Documents
Technical documentation and resources
