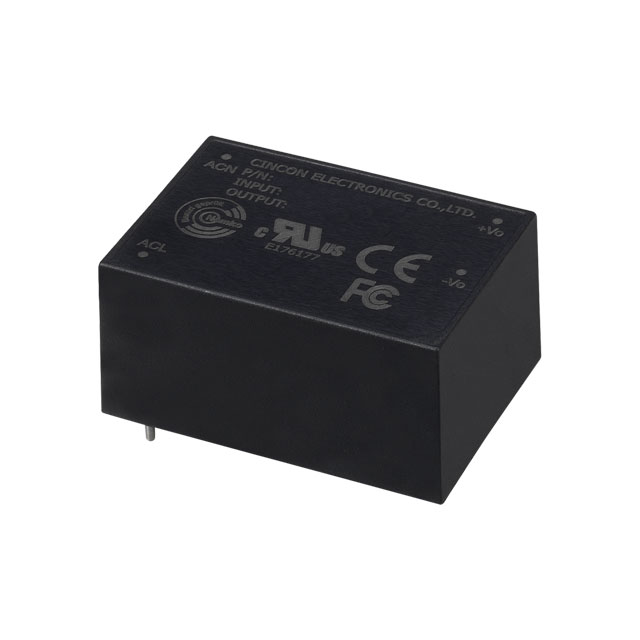

CFM12S090-E

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 12W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	CFM12S090-E

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, FCC, NEMKO, CE
Current - Output (Max) [Max]	1.34 A
Efficiency	85 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power (Watts)	12 W
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	27.9 mm
Size / Dimension [y]	1.1 in
Size / Dimension [z]	19.6 mm
Size / Dimension [z]	0.77 "
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	9 V

Part	Line Regulation	Approval Agency	Voltage - Output 1	Efficiency	Package / Case	Standard Number	Current - Output (Max) [Max]	Power (Watts)	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Applications	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Load Regulation	Mounting Type
Cincon Electronics Co. LTD CFM12S090-E	1 %	CE cURus FCC NEMKO	9 V	85 %	Module	60335-1 62368-1	1.34 A	12 W	Enclosed	27.9 mm	19.6 mm	40.6 mm	1.6 "	0.77 "	1.1 in	Universal Input	Household Appliances ITE (Commercial)	1	90 VAC	264 VAC	-40 °C	75 ¯C	1 %	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 9V 1.34A 90 ~ 264 VAC Input
