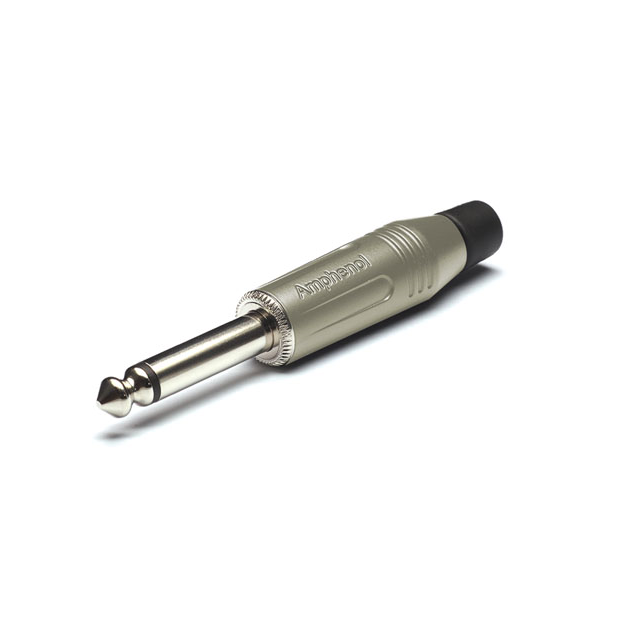

ACPM-GN BULK
ActiveAMPHENOL AUDIO
1/4" MONO STRAIGHT PLUG, MUSICIAN RANGE, NICKEL FINISH, BULK PACKAGING /BOX ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACPM-GN BULK |
|---|---|
| Actual Diameter [diameter] | 0.249 in |
| Actual Diameter [diameter] | 6.32 mm |
| Body Color | Silver |
| Cable Opening [Max] [custom] | 6.5 mm |
| Cable Opening [Max] [custom] | 0.256 in |
| Cable Opening [Min] [custom] | 0.118 in |
| Cable Opening [Min] [custom] | 3 mm |
| Connector Type | Phone Plug |
| Contact Material - Plating [custom] | Nickel |
| Features | Cover |
| Gender | Male |
| Housing Material | Zinc Die Cast |
| Internal Switch(s) | False |
| Mating Length/Depth | 1.19 in |
| Mating Length/Depth | 30.3 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ACPM-GN Series
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder
