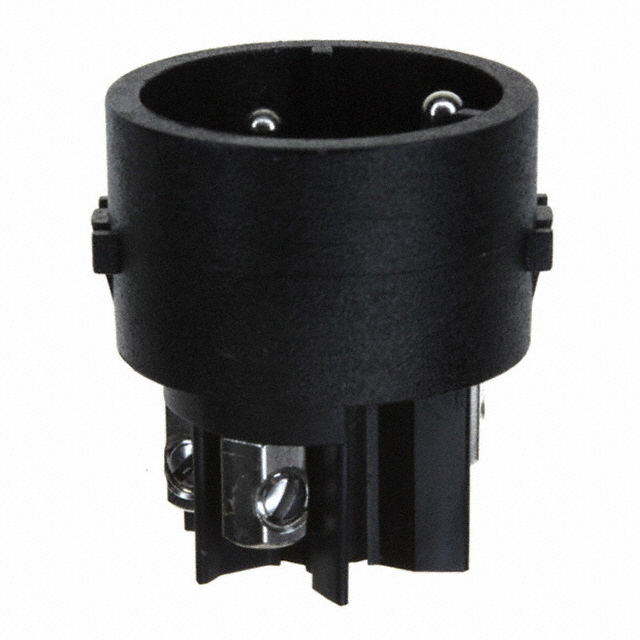

SA3241

Active

BULGIN LIMITED

CIRCULAR CONNECTOR INSERT, BUCCANEER MINI SERIES, 4 CONTACTS, PIN, SCREW, NICKEL PLATED CONTACTS

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR INSERT, BUCCANEER MINI SERIES, 4 CONTACTS, PIN, SCREW, NICKEL PLATED CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	SA3241

Connector Type	Insert, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	6 A
Features	Insert Only, Requires Shell
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

...

Part	Accessory Type	Color	Features	For Use With/Related Products	Material	Number of Positions	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Orientation	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Termination	Shielding	Contact Finish - Mating	Insert Material	Material Flammability Rating	Voltage Rating
BULGIN LIMITED SL0002	Wire Seal
BULGIN LIMITED PXP6083	Cap (Cover) Sealing	Gray	Contains Strap Dust Tight Waterproof	PXP6012	Thermoplastic
BULGIN LIMITED WLMP04						4
BULGIN LIMITED PXA980		Multiple			Silicone		0.787 "	20 mm	Cable Gland	14 mm	0.551 in	IP68 - Dust Tight Waterproof
BULGIN LIMITED WLPP02						2
BULGIN LIMITED WLS03				PX0100 Series
BULGIN LIMITED WLS02				PX0100 Series		2
BULGIN LIMITED PXP4083	Cap (Cover) Sealing	Blue	Contains Strap Dust Tight Waterproof	PXP4013 PXP4043	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
BULGIN LIMITED PX0992	Cap (Cover) Sealing	Blue	Dust Tight Metal Strap Waterproof	PX0931/xx/x PX0941/xx/x	Polyimide
BULGIN LIMITED SA3241			Insert Only Requires Shell										Keyed	Insert Male Pins	-20 C	70 °C	Brass	6 A	1	3	4	Screw	Unshielded	Nickel	Nylon Polyamide (PA)	UL94 V-0	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 Power + PE) Position Circular Connector Insert, Male Pins Screw
