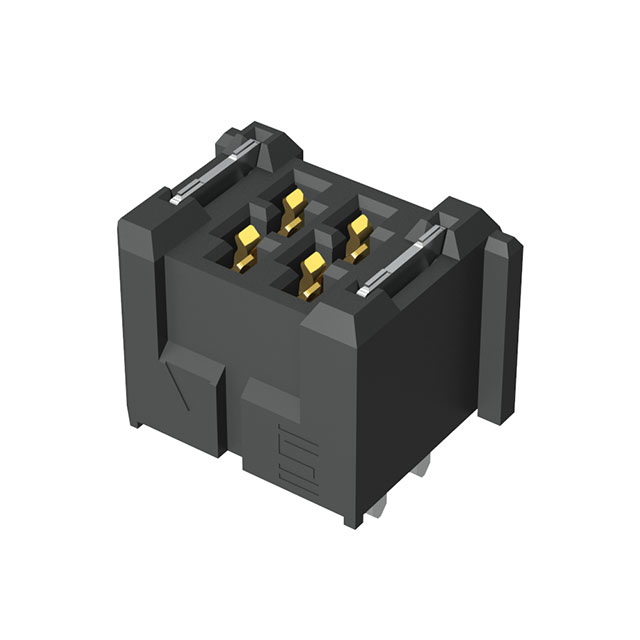

UMPS-02-05.5-G-V-S-W-TR - UMPS-02-05.5-G-VT-SM-WT

UMPS-02-05.5-G-V-S-W-TR

Active
Samtec Inc.

CONN RCPT 2POS 2.00MM SMD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUMPS DatasheetDatasheet+2
UMPS-02-05.5-G-V-S-W-TR - UMPS-02-05.5-G-VT-SM-WT

UMPS-02-05.5-G-V-S-W-TR

Active
Samtec Inc.

CONN RCPT 2POS 2.00MM SMD SLDR

Deep-Dive with AI

DocumentsUMPS DatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationUMPS-02-05.5-G-V-S-W-TR
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
FeaturesPick and Place, Solder Retention
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions2
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.079 in
Pitch [x]2 mm
TerminationSolder
Voltage Rating650 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.14
50$ 2.56
100$ 2.17
Digi-Reel® 1$ 3.14
50$ 2.56
100$ 2.17
Tape & Reel (TR) 425$ 2.17
850$ 2.00
1275$ 1.92

Description

General part information

UMPS-02 Series

2 Position Receptacle, Female Blade Sockets Connector Solder 0.079" (2.00mm) Surface Mount
