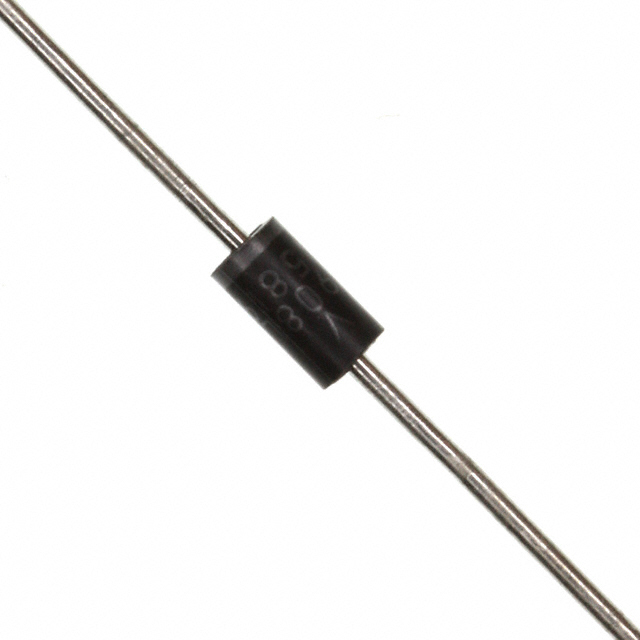

1N5819RL - 1N5819

1N5819RL

Active
STMicroelectronics

RECTIFIER DIODE, SINGLE, 40 V, 1 A, DO-204AL, 2, 550 MV ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+21
1N5819RL - 1N5819

1N5819RL

Active
STMicroelectronics

RECTIFIER DIODE, SINGLE, 40 V, 1 A, DO-204AL, 2, 550 MV ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+21

Technical Specifications

Parameters and characteristics for this part

Specification1N5819RL
Current - Average Rectified (Io)1 A
Current - Reverse Leakage @ Vr500 µA
Mounting TypeThrough Hole
Operating Temperature - Junction150 °C
Package / CaseDO-204AL, DO-41, Axial
Speed200 mA, 500 ns
Supplier Device PackageDO-41
TechnologySchottky
Voltage - DC Reverse (Vr) (Max) [Max]40 V
Voltage - Forward (Vf) (Max) @ If550 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.39
10$ 0.28
100$ 0.14
500$ 0.11
1000$ 0.08
2000$ 0.07
Tape & Reel (TR) 5000$ 0.07
10000$ 0.06
25000$ 0.06
50000$ 0.05
125000$ 0.05
NewarkEach 1$ 0.27
10$ 0.19
100$ 0.12
500$ 0.10
1000$ 0.10
2500$ 0.09

Description

General part information

1N5819 Series

Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-41 these devices are intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers.
