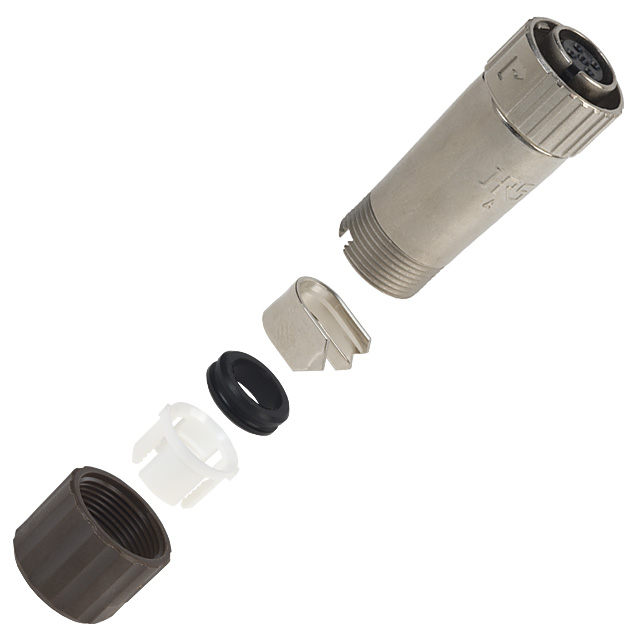

LF10WBP-4S

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	LF10WBP-4S

Applications	Telecommunications, Industrial
Backshell Material, Plating	Nickel, Zinc Alloy
Color	Brown, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp, Coupling Nut
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Shielding	Shielded
Voltage Rating	125 VAC

Part	Shell Material	Shielding	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Size - Insert	Voltage Rating	Number of Positions	Backshell Material, Plating	Current Rating (Amps)	Orientation	Contact Finish - Mating	Mounting Type	Shell Finish	Connector Type	Contact Material	Insert Material	Applications	Color	Primary Material
Hirose Electric USA, Inc. LF10WBP-4S(03)	Zinc Alloy	Shielded	Backshell Clamp Coupling Nut Strain Relief	Bayonet Lock	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	0.203 Ám	8 Áin	UL94 V-0	10	125 VAC	4	Black Chrome Zinc Alloy	10 A	Keyed	Gold	Free Hanging (In-Line)	Chrome	Female Sockets Plug	Copper Alloy	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Black Brown	Metal
Hirose Electric USA, Inc. LF10WBP-12P(11)
Hirose Electric USA, Inc. LF10WBP-4S	Zinc Alloy	Shielded	Backshell Clamp Coupling Nut Strain Relief	Bayonet Lock	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	0.203 Ám	8 Áin	UL94 V-0	10	125 VAC	4	Nickel Zinc Alloy	10 A	Keyed	Gold	Free Hanging (In-Line)	Nickel	Female Sockets Plug	Copper Alloy	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Brown Silver	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
