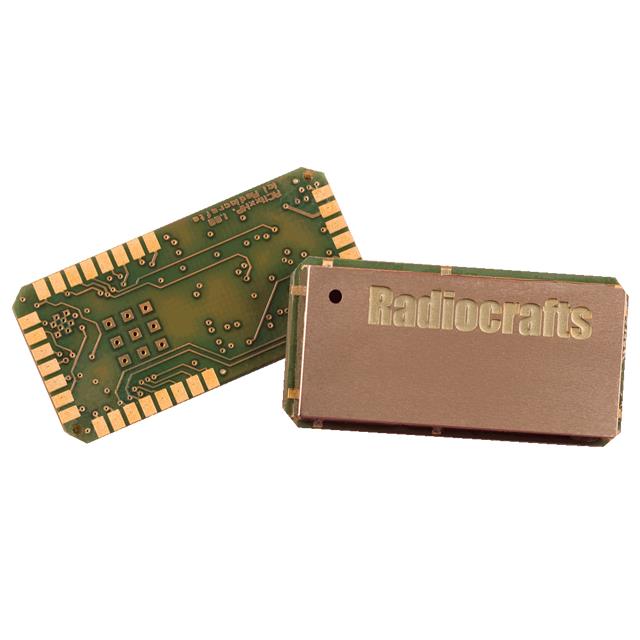

RC2411HP-AT-ZNM

Active

Radiocrafts AS

RF TXRX MOD 802.15.4 CAST SMD

Search across all available documentation for this part.

Active

Radiocrafts AS

RF TXRX MOD 802.15.4 CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	RC2411HP-AT-ZNM

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	27 mA
Current - Transmitting	175 mA
Data Rate	250 KBd
Frequency	2.4 GHz
Modulation	O-QPSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	60-SMD Module
Package / Case	53 Leads
Power - Output	20 dBm
Protocol	Zigbee®
RF Family/Standard	802.15.4
Sensitivity	-99 dBm
Serial Interfaces	UART
Utilized IC / Part	CC2530, CC2591
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Package / Case	Package / Case	Power - Output	Modulation	Mounting Type	Current - Receiving	Utilized IC / Part	RF Family/Standard	Antenna Type	Current - Transmitting	Data Rate	Protocol	Frequency	Serial Interfaces	Sensitivity	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Radiocrafts AS RC2411HP-AT-ZNM	60-SMD Module	53 Leads	20 dBm	O-QPSK	Surface Mount	27 mA	CC2530 CC2591	802.15.4	Antenna Not Included Castellation	175 mA	250 KBd	Zigbee®	2.4 GHz	UART	-99 dBm	-30 ░C	85 °C	3.6 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 17.45

General part information

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
