OSTTE160161
ActiveOn Shore Technology Inc.

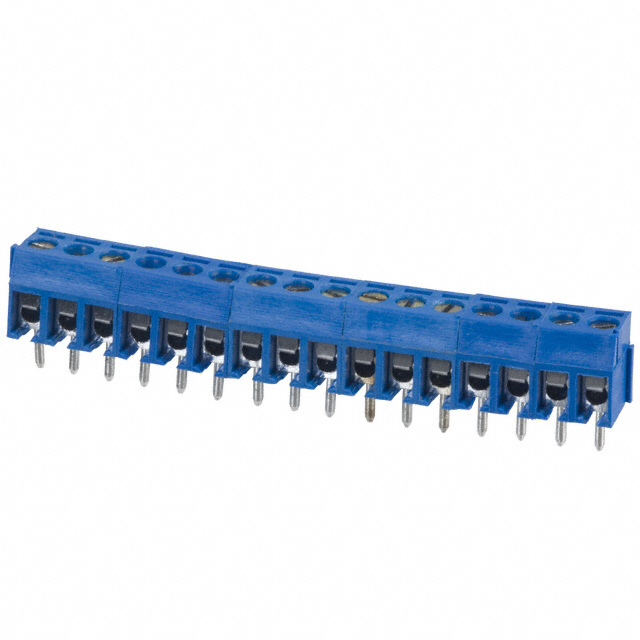

TERM BLK 16P SIDE ENT 3.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTTE160161
ActiveOn Shore Technology Inc.
TERM BLK 16P SIDE ENT 3.5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTTE160161 |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 16 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2 |
| Torque - Screw | 0.2 Nm |
| Torque - Screw | 1.7 Lb-In |
| Voltage | 125 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.67 | |
| 10 | $ 2.80 | |||
| 100 | $ 2.28 | |||
| 1000 | $ 1.68 | |||
| 5000 | $ 1.58 | |||
Description
General part information
OSTTE16 Series
16 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
