475024-304
ActiveLaird Thermal Systems, Inc.
PELTIER MS4,108,10,20,00,W8
Deep-Dive with AI
Search across all available documentation for this part.
475024-304
ActiveLaird Thermal Systems, Inc.
PELTIER MS4,108,10,20,00,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 475024-304 |
|---|---|
| Current - Max [Max] | 1.5 A |
| Delta Tmax @ Th | 110 °C, 25 °C |
| Features | Lead Wires, Non-Sealed |
| Number of Stages | 4 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 1.1 W |
| Size / Dimension [x] | 23.9 mm |
| Size / Dimension [y] | 18 mm |
| Voltage - Max [Max] | 6.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 343.88 | |
Description
General part information
475024 Series

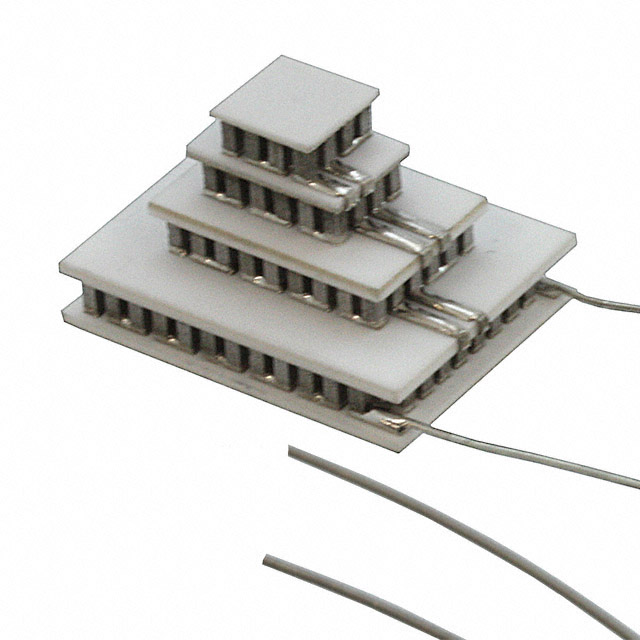

Peltier Module 1.1W @ 25°C 1.5 A 80°C
