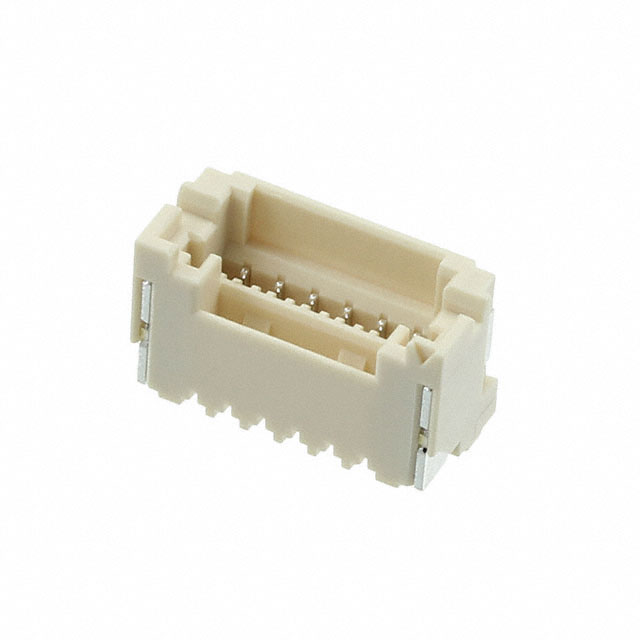

BM06B-ZESS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 6POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 6POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM06B-ZESS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	9.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Contact Type	Voltage Rating	Number of Rows	Contact Finish - Post	Features	Mounting Type	Mated Stacking Heights	Termination	Contact Shape	Number of Positions	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Material	Shrouding	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Style	Fastening Type	Current Rating (Amps)
JST Sales America Inc. BM06B-ZESS-TBT	Outer Shroud Contact	100 V	1	Tin	Pick and Place Solder Retention	Surface Mount	9.4 mm	Solder	Rectangular	6	All	Header	-25 °C	85 °C	Copper Alloy	Nylon Polyamide (PA)	Shrouded - 4 Wall	UL94 V-0	Natural	0.295 in	7.5 mm	Board to Cable/Wire	Locking Ramp	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.059" (1.50mm)
