Technical Specifications
Parameters and characteristics for this part
| Specification | P70-1000045R |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 10000 |
| Maximum Working Height [Max] | 3 mm |
| Maximum Working Height [Max] | 0.118 in |
| Minimum Working Height [Min] | 2.7 mm |
| Minimum Working Height [Min] | 0.106 " |
| Mounting Type | Surface Mount |
| Operating Force - Mid Compression | 89.74 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pad Layout Dimension [diameter] | 2.2 mm |
| Pad Layout Dimension [diameter] | 0.087 in |
| Plunger Size [diameter] | 0.035 in |
| Plunger Size [diameter] | 0.9 mm |
| Recommended Working Height | 0.114 in |
| Recommended Working Height | 2.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.26 | ||
| 10 | $ 0.96 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.62 | |||
| Tape & Reel (TR) | 1400 | $ 0.55 | ||
| 2800 | $ 0.52 | |||
| 4200 | $ 0.50 | |||
| 7000 | $ 0.47 | |||
| 9800 | $ 0.46 | |||
| 14000 | $ 0.44 | |||
Description
General part information
P70-10000 Series

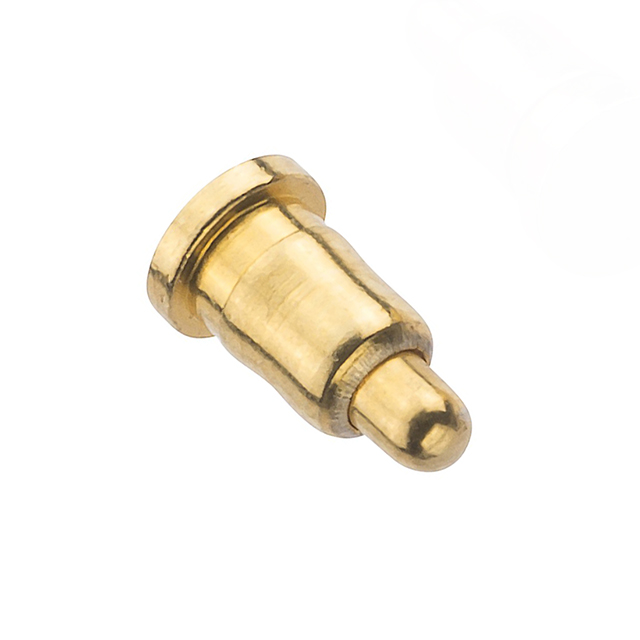

The P70-1000045R from Harwin is a surface mount single spring loaded contact. It can also refer as pogo pins and it is used for individual contacts or irregular layout requirements. This spring loaded contact mates with any contact surface or S70 series SMT contact pads. It has gold finish for improved wear resistance.
