ICM-318-1-GT-HT
ActiveAdam Tech

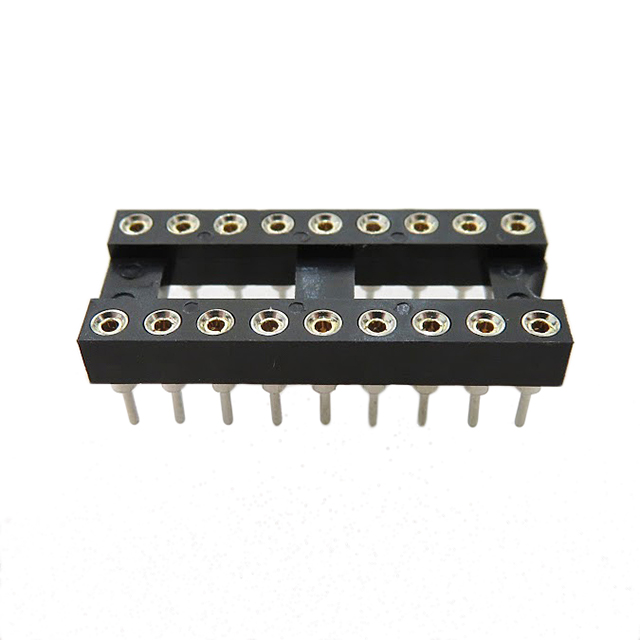

MACHINE PIN SOCKET, IC, DIP, 18P
Deep-Dive with AI
Search across all available documentation for this part.
ICM-318-1-GT-HT
ActiveAdam Tech
MACHINE PIN SOCKET, IC, DIP, 18P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICM-318-1-GT-HT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 18 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.11 in |
| Termination Post Length | 2.78 mm |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.25 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.52 | |||
Description
General part information
ICM-3 Series
18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
