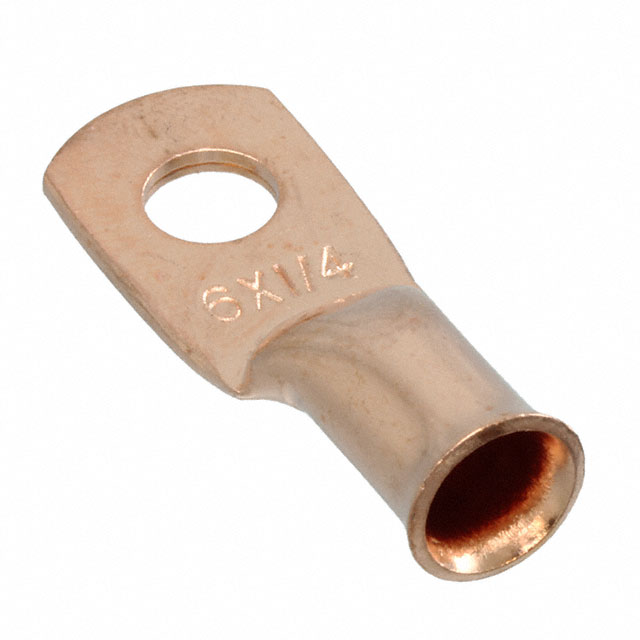

BU-L6-250

Active

Mueller Electric Co

LUG TERMINAL, CRIMP, 6 AWG, COMPRESSION LUG, M6

Search across all available documentation for this part.

Active

Mueller Electric Co

LUG TERMINAL, CRIMP, 6 AWG, COMPRESSION LUG, M6

Technical Specifications

Parameters and characteristics for this part

Specification	BU-L6-250

Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	37.34 mm
Length - Overall [x]	1.47 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness [custom]	0.065 in
Thickness [custom]	1.65 mm
Width - Outer Edges	13.97 mm
Width - Outer Edges	0.55 in
Wire Gauge	6 AWG

Part	Mounting Type	Insulation	Stud/Tab Size	Terminal Type	Wire Gauge	Termination	Thickness [custom]	Thickness [custom]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Contact Material
Mueller Electric Co BU-L6-250	Free Hanging (In-Line)	Non-Insulated	0.25 Stud	Circular Tubular (Battery Lugs)	6 AWG	Crimp	0.065 in	1.65 mm	37.34 mm	1.47 in	13.97 mm	0.55 in	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mueller’s BU-L6-250 wire lug is intended to be crimped or soldered to a 6 AWG wire. The mounting hole is designed to fit over a 1/4" stud.
