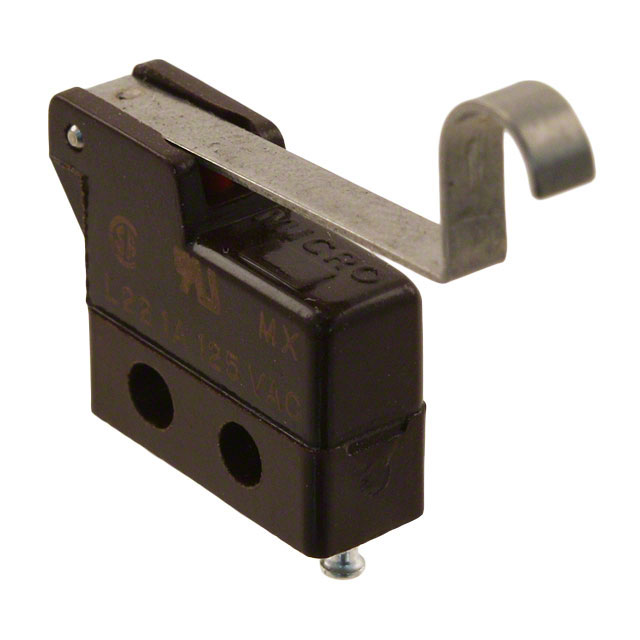

313SX5-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
313SX5-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 313SX5-T |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position | 14.86 mm |
| Operating Position | 0.585 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.022 in |
| Overtravel | 0.55 mm |
| Pretravel | 2.7 mm |
| Pretravel | 0.106 in |
| Release Force | 5.099 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.41 | |
| 10 | $ 37.63 | |||
| 25 | $ 34.92 | |||
| 50 | $ 33.00 | |||
| 100 | $ 31.18 | |||
| 250 | $ 29.54 | |||
Description
General part information
313SX5 Series
Switch SPDT Chassis Mount
