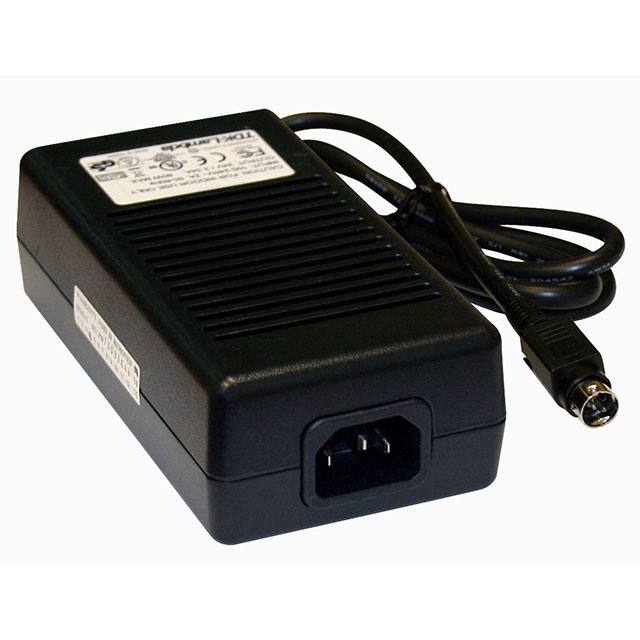

DTM65PW360D

Active

TDK-LAMBDA

AC/DC DESKTOP ADAPTER 36V 65W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC DESKTOP ADAPTER 36V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	DTM65PW360D

Applications	Medical
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.81 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	5.2 in
Size / Dimension [x]	132 mm
Size / Dimension [y]	69 mm
Size / Dimension [y]	2.71 "
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	36 V
Weight	0.86 lb
Weight	390.09 g

Part	Output Connector	Output Connector	Region Utilized	Efficiency	Input Type	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Weight	Weight	Applications	No Load Power Consumption [Max]	Cord Length	Cord Length	Voltage - Output	Form
TDK-LAMBDA DTM65PW360D	4 Pin	Power DIN	International	Level VI	Cord	1.81 A	65 W	-20 C	60 °C	90 VAC	264 VAC	1.57 "	69 mm	5.2 in	2.71 "	132 mm	40 mm	IEC 320-C14	0.86 lb	390.09 g	Medical	150 mW	1.5 m	59 in	36 V	Desktop (Class I)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.32

General part information

36V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
