8282-8PG-311

Active

Conxall/Switchcraft

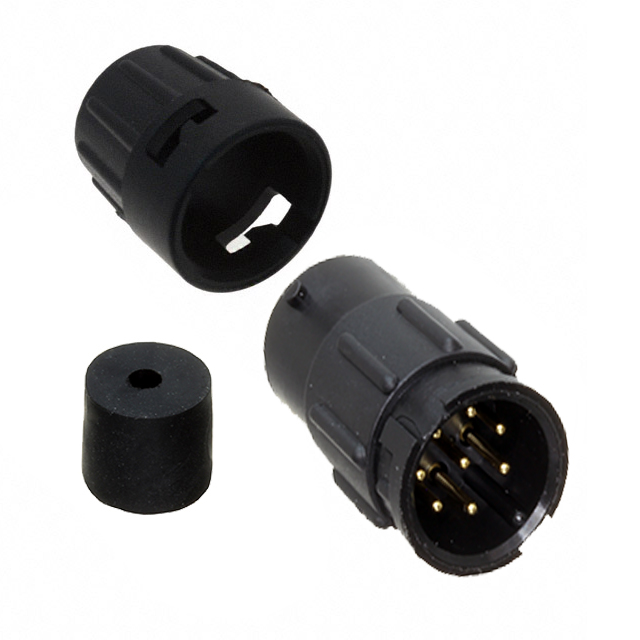

CONN RCPT MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8282-8PG-311

Active

Conxall/Switchcraft

CONN RCPT MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8282-8PG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

8282-8PG Series

Part	Backshell Material, Plating	Shielding	Number of Positions	Mounting Type	Applications	Voltage Rating	Fastening Type	Contact Material	Connector Type	Orientation	Features	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Current Rating (Amps)	Ingress Protection	Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 8282-8PG-321	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic	5.33 mm	5.84 mm	0.21 in	0.23 in	Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C
Conxall/Switchcraft 8282-8PG-522	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic	5.59 mm		0.22 in	0.25 in	Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C	6.35 mm
Conxall/Switchcraft 8282-8PG-513	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C		0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 8282-8PG-516	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C				0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8282-8PG-318	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C				0.18 in	0.2 in	4.57 mm	5.08 mm
Conxall/Switchcraft 8282-8PG-3DC	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C
Conxall/Switchcraft 8282-8PG-519	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic	4.83 mm		0.19 in	0.21 in	Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C	5.33 mm
Conxall/Switchcraft 8282-8PG-311	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C								2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 8282-8PG-315	Nylon Polyamide (PA)	Unshielded	8	Free Hanging (In-Line)	Automotive Communication Systems Instrumentation	600 V	Bayonet Lock	Brass	Male Pins Receptacle	Keyed	Backshell	Plastic					Varies by Wire Gauge	Weathertight	Black	Gold	-40 °C	115 °C		0.15 in 0.17 in	3.81 mm 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.83
		10	$ 10.05
		25	$ 9.43
		50	$ 8.98
		100	$ 8.55
		300	$ 7.91
		500	$ 7.63
		1000	$ 7.27

Description

General part information

8282-8PG Series

8 Position Circular Connector Receptacle, Male Pins Solder Cup
