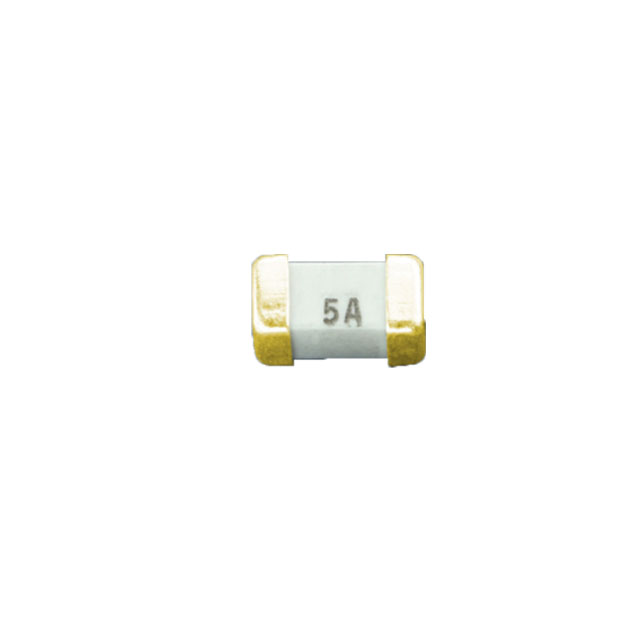

TCM-5A

Active

OptiFuse

FUSE BRD MNT 5A 125VAC/VDC 2410

Search across all available documentation for this part.

Active

OptiFuse

FUSE BRD MNT 5A 125VAC/VDC 2410

Technical Specifications

Parameters and characteristics for this part

Specification	TCM-5A

Approval Agency	UL
Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	5 A
DC Cold Resistance	0.021 Ohms
Fuse Type	Board Mount
Melting I²t	54.8
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6125 Metric
Package / Case	2410
Response Time	Slow Blow
Size / Dimension [x]	6.1 mm
Size / Dimension [x]	0.24 in
Size / Dimension [y]	2.54 mm
Size / Dimension [y]	0.1 in
Size / Dimension [z]	0.1 "
Size / Dimension [z]	2.54 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	DC Cold Resistance	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Fuse Type	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Response Time	Melting I²t
OptiFuse TCM-2.5A	40 mOhms	2.5 A	125 VDC	Surface Mount	Board Mount	125 V	50 A	-55 °C	125 °C	6125 Metric	2410	UL	6.1 mm	0.1 "	2.54 mm	0.24 in	0.1 in	2.54 mm	Slow Blow	16.55
OptiFuse TCM-1.25A		1.25 A	125 VDC	Surface Mount	Board Mount	125 V	50 A	-55 °C	125 °C	6125 Metric	2410	UL	6.1 mm	0.1 "	2.54 mm	0.24 in	0.1 in	2.54 mm	Slow Blow
OptiFuse TCM-1.5A	67 mOhms	1.5 A	125 VDC	Surface Mount	Board Mount	125 V	50 A	-55 °C	125 °C	6125 Metric	2410	UL	6.1 mm	0.1 "	2.54 mm	0.24 in	0.1 in	2.54 mm	Slow Blow	3.835
OptiFuse TCM-5A	0.021 Ohms	5 A	125 VDC	Surface Mount	Board Mount	125 V	50 A	-55 °C	125 °C	6125 Metric	2410	UL	6.1 mm	0.1 "	2.54 mm	0.24 in	0.1 in	2.54 mm	Slow Blow	54.8
OptiFuse TCM-3A	33 mOhms	3 A	125 VDC	Surface Mount	Board Mount	125 V	50 A	-55 °C	125 °C	6125 Metric	2410	UL	6.1 mm	0.1 "	2.54 mm	0.24 in	0.1 in	2.54 mm	Slow Blow	22.54

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.56

General part information

5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2410 (6125 Metric)
